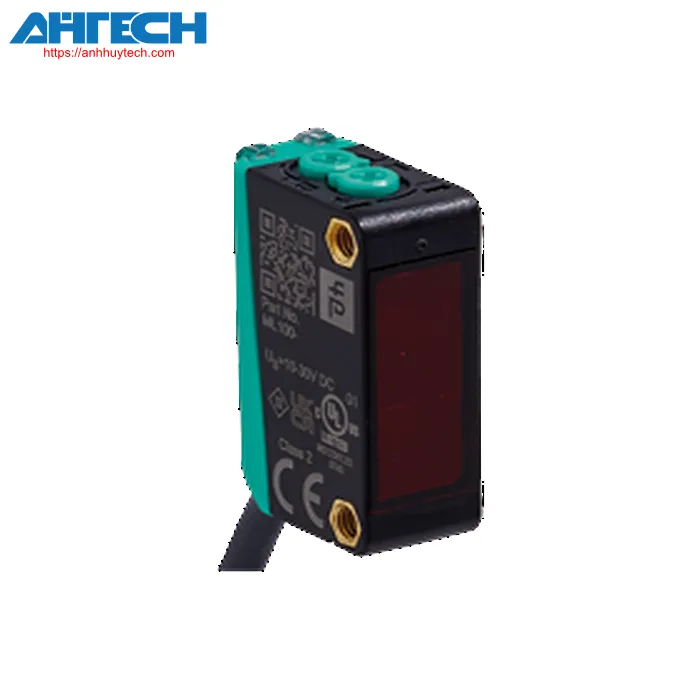

Photoelectric Sensor ML100-8-H-5374/115/120/162

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of ML100-8-H-5374/115/120/162

Classifications

Item Specification
Diffuse reflection sensor featuring specialized light spots for PCB detection, background suppression, compact design, 100 mm detection range, utilizing red light, light/dark mode, PNP outputs, permanent cable

Overall specifications
Detection distance		20 ... 100 mm preset to 50 ... mm
Minimum detection range		10 ... 25 mm
Maximum detection range		25 ... 100 mm
modification range		25 ... 100 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum
polarizing filter		no
Black-white contrast (6 %/90 %)		< 20 %
Size of the illumination spot		3 light spots, spot size of 4 mm at a distance of 50 mm, with spots spaced 8 mm apart; spot size of 2.5 mm at a distance of 80 mm, with spots spaced 12 mm apart; spot size of 4 mm at a distance of 100 mm, with spots spaced 15 mm apart (from outer spot to outer spot)
optical surface		frontal
Ambient light threshold		EN 60947-5-2:2007+A1:2012
Parameters related to functional safety
MTTF_d		1100 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: power activated
operation indicator		Yellow indicator LED: illuminates when an object is detected, blinks during adjustment mode
control components		detection range adjuster
control components		Light-on/dark-on toggle switch configured to dark-on
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 15 mA
Output
Type of switch		The factory configuration is: dark-on
Output signal		2 PNP outputs, separate short-circuit protected , reverse polarity safeguarded , open collector transistor
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
voltage loss		= 1.5 V DC
commutation frequency		500 Hz
reaction time		1 ms
Adherence to standards and directives
Compliance with directives
	EMC Regulation 2004/108/EC	EN 60947-5-2:2007+A1:2012
Compliance with standards
	Standards	UL 60947-5-2
Certifications and approvals
UL certification		cULus approved, Class 2 power supply or listed Power Supply featuring a limited voltage output with (possibly integrated) fuse (max. 3.3 A per UL248), Type 1 enclosure
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-30 ... 60 °C (-22 ... 140 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		2 m permanently attached cable
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 50 g
Fastening torque for securing screws		0.6 Nm
Measurements
	Height	31 mm
	Width	11 mm
	Depth	20 mm
Cable duration		2 m
