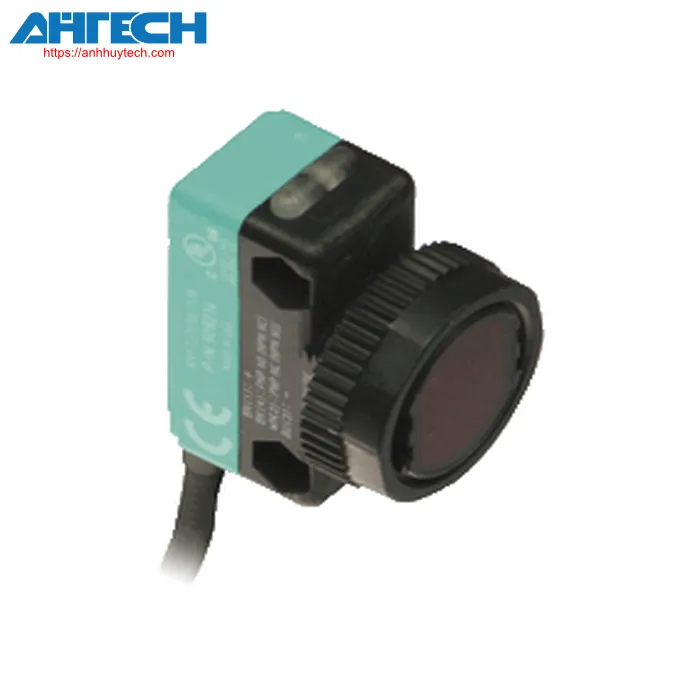

Photoelectric Sensor Pepperl+Fuchs ML17-8-450/115/120

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification
Diffuse reflection sensor

Overall specifications
Detection distance		10 ... 450 mm
modification range		60 ... 450 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		IRED
Illumination type		modulated infrared light at 950 nm
Ambient light threshold		= 10000 Lux
Indicators/operation controls
Operational status indicator		LED green
operation indicator		Yellow indicator LED illuminates when the receiver is activated
control components		detection range adjuster
Electrical parameters
Operational voltage		10 ... 30 V DC , class 2
Ripple		max. 10 %
No-load input current		< 25 mA
Delay time prior to availability		= 200 ms
Output
Type of switch		light/dark on
Output signal		2 PNP, short-circuit protected, reverse polarity safeguarded
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA per channel
voltage loss		= 2 V DC
commutation frequency		500 Hz
reaction time		= 1 ms
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
EAC compliance		TR CU 020/2011
UL certification		cULus
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-20 ... 55 °C (-4 ... 131 °F)
Ambient storage temperature		-20 ... 70 °C (-4 ... 158 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		2 m PVC cable
Material
	Housing	ABS
	optical surface	Acrylic
Mass		approx. 40 g
Measurements
	Height	34.5 mm
	Width	15 mm
	Length	29.3 mm
