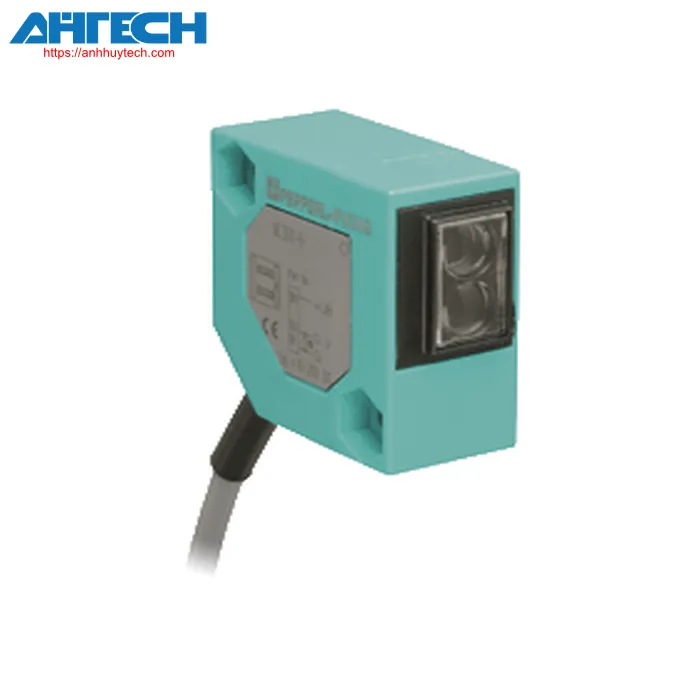

Photoelectric Sensor ML300-8-600-RT/25/102/115

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of ML300-8-600-RT/25/102/115

Classifications

Item Specification
Diffuse reflection sensor with a miniature design, adjustable detection range of 600 mm, red light, light-on operation, NPN output, and permanent cable

Overall specifications
Detection distance		0 ... 600 mm, modifiable
modification range		150 ... 600 mm
Reference point		typical white 200 mm x 200 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum , 660 nm
Size of the illumination spot		approximately 130 mm at a range of 600 mm
angle of opening		approx. 13 °
Ambient light threshold
	constant illumination	10000 Lux
	Modulated illumination	5000 Lux
Indicators/operation controls
operation indicator		Yellow indicator LED: illuminates when the output is engaged LED green: Adequate functioning surplus
control components		detection range adjuster
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		max. 35 mA
Output
Type of switch		light-on
Output signal		1 NPN output, protected against short circuits, safeguarded against reverse polarity, open collector
Switching voltage level		max. 30 V DC
Switching capacity		max. 0.1 A
voltage loss		= 2 V DC
commutation frequency		1000 Hz
reaction time		0.5 ms
Compliance
Product specification		EN 60947-5-2
Adherence to standards and directives
Compliance with standards
	Resistance to shock and impact	EN 60947-5-7 30 g, 11 ms, all directions
	vibration durability	EN 60947-5-7, 10-55 Hz/1.5 mm displacement, all axes
Certifications and approvals
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-25 ... 55 °C (-13 ... 131 °F)
Mechanical characteristics
Protection等级		IP65
Linkage		2 m permanently attached cable
Material
	Housing	ABS
	optical surface	plastic
	Cable	PVC
Mass		75 g
Measurements
	Height	30 mm
	Width	30 mm
	Depth	15 mm
