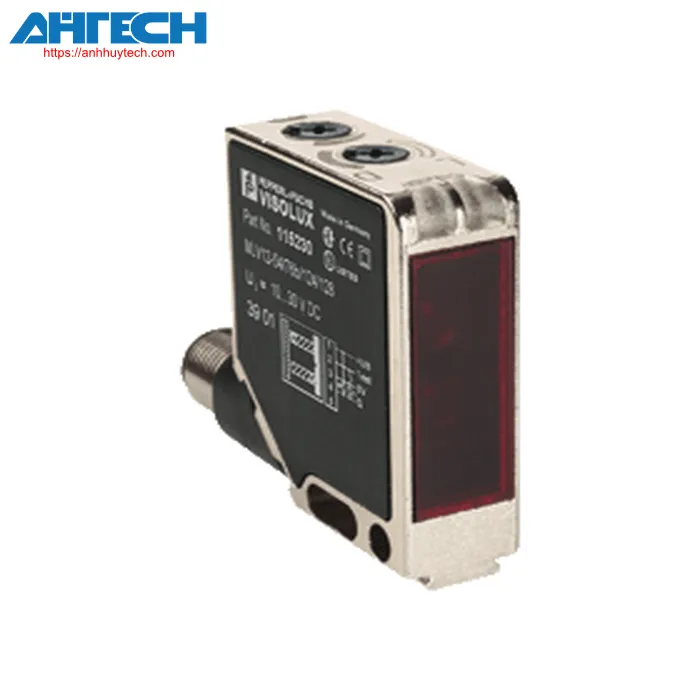

Photoelectric Sensor MLV12-54-2563/49/124

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of MLV12-54-2563/49/124

Classifications

Item Specification
Compact fire detection photoelectric sensor

Overall specifications
Operational sensing range		0 ... 2.1 m (using H60 reflective surface)
reflector spacing		0.2 ... 2.1 m
Reference point		H60 reflective surface
illumination source		LED 645 nm
Illumination type		modulated red light in the visible spectrum
Size of the illumination spot		approx. 70 mm
angle of opening		1.5 °
Ambient light threshold		50000 Lux
Indicators/operation controls
Operational status indicator		Green LED, blinks in the event of a short circuit
operation indicator		2 yellow LEDs illuminate when the light beam is unobstructed, flash when the functioning reserve is insufficient, and turn off when the light beam is broken
control components		rotary switch for light/dark adjustment
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		max. 40 mA
Ingress protection rating		II, rated voltage = 300 V AC with pollution degree 1-2 according to IEC 60664-1
Output
Type of switch		switchable light/dark mode
Output signal		1 NPN and 1 PNP output, direct switching capability, short-circuit protection, reverse polarity protection, open collector
Switching voltage level		max. 30 V DC
Switching capacity		max. 0.2 A
voltage loss		= 2.5 V DC
commutation frequency		= 40 Hz
reaction time		10 ms
Compliance
Product specification		EN 60947-5-2
Compliance with standards
Standards		EN 60947-5-2 smoke insensitive up to 2 dB/m ( EN 54-12 )
Certifications and approvals
UL certification		cULus Certified, Class 2 Power Supply, Type 1 enclosure
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Certifications		VdS/DIBt compliance certificate No. 25020, approval number Z-6.510-2295
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F)
Ambient storage temperature		-40 ... 75 °C (-40 ... 167 °F)
Comparative moisture content		30% ... 85% non-condensing ; Non-icing
Mechanical characteristics
Protection等级		IP67
Linkage		5-pin M12 x 1 connector featuring a metal thread, 90° adjustable
Material
	Housing	Frame: nickel-plated, die-cast zinc, Lateral components: fiberglass-reinforced plastic PC
	optical surface	synthetic panel
Mass		60 g
Measurements
	Height	49 mm
	Width	41.5 mm
	Depth	15 mm
