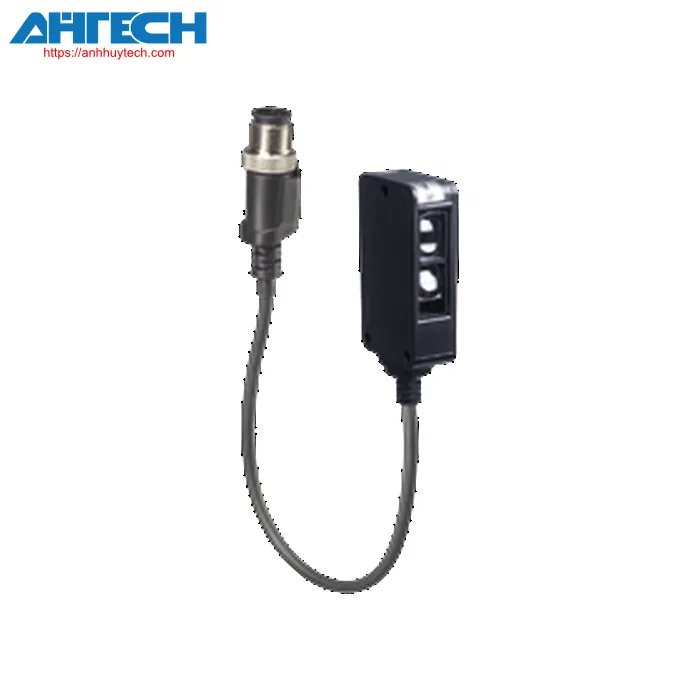

Photoelectric Sensor Pepperl+Fuchs MLV41-8-H-RT-8827

Pepperl+Fuchs Categories

Photoelectric Sensor MLV41-8-H-RT-8827

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of MLV41-8-H-RT-8827

Classifications

Item Specification
Triangulation sensor featuring background elimination

Overall specifications
Detection distance		fixed setting ; 40 ... 345 mm ; -25 mm Tolerance
Background elimination		+ 10 % of the maximum threshold of the detection range
illumination source		LED
Illumination type		modulated red light in the visible spectrum , 660 nm
Black-white contrast (6 %/90 %)		< 25 % at 320 mm
Size of the illumination spot		approximately 8 mm at sensor distance 320 mm
angle of opening		1.5 °
Ambient light threshold		40000 Lux
Parameters related to functional safety
MTTF_d		1260 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green, continuously illuminated Power on, Undervoltage indicator: Green LED, flashing (approximately 0.8 Hz), short-circuit: LED green flashing (approx. 4 Hz)
operation indicator		2 LEDs yellow ON: object detected within the scanning area OFF: item beyond the detection range
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		max. 25 mA
Output
Output signal		2 push-pull (4 in 1) outputs, supplementary, short-circuit resistant, protected against reverse polarity
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA
voltage loss		= 2.5 V DC
commutation frequency		1000 Hz
reaction time		0.5 ms
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
Ingress protection rating		II, rated voltage = 50 V AC with pollution degree 1-2 according to IEC 60664-1 , functional insulation acc. to DIN EN 50178
UL certification		cULus Certified 57M3 (Only in conjunction with UL Class 2 power supply; Type 1 enclosure)
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F)
Ambient storage temperature		-40 ... 75 °C (-40 ... 167 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		Permanent cable of 300 mm with a 4-pin M12 connector
Material
	Housing	Aluminum , Delta-Seal coated
	optical surface	glass panel
Mass		100 g
Measurements
	Height	56.5 mm
	Width	31 mm
	Depth	13.6 mm
