Photoelectric Sensor Pepperl+Fuchs Module

Pepperl+Fuchs Categories

Brand: Pepperl+Fuchs
Product Code:

Share on:

Description Download Accessories

Item Specification

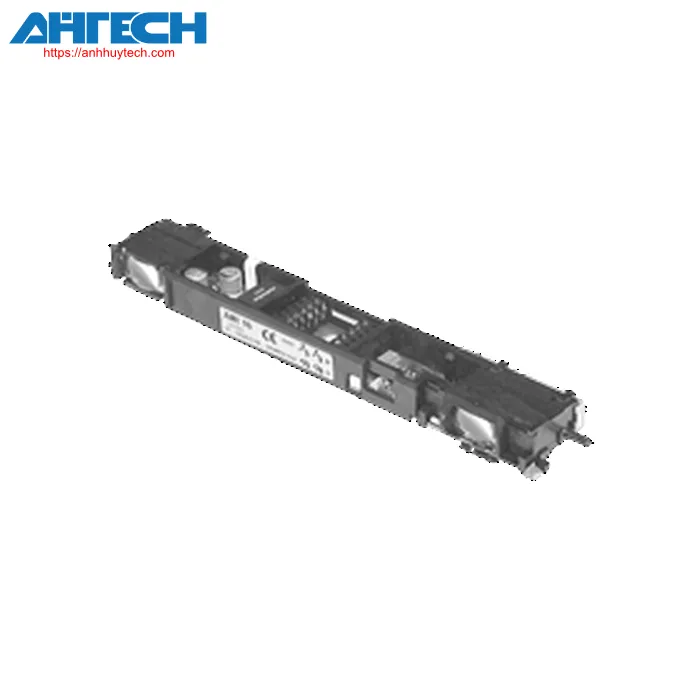

sensing unit for replacement/extension designed for installation in the DoorScan^® and TopScan sensor profiles, multifunction interface module

Parameters related to functional safety
Safety Integrity Level (SIL)		SIL 2
Performance level (PL)		PL d
Category		Cat. 2
MTTF_d		72 a
B_10d		2 E+8
B₁₀		3 E+6
Indicators/operation controls
control components		Jumper for PNP / NPN interface
Electrical parameters
Operational voltage		24 V DC ± 20 %
No-load input current		30 mA
Input
Input type		Test, Standby, Relay power supply
Output
Output signal		Hinge side (BS): Relay, 1 changeover, Opposite hinge side (BGS): Relay, 1 changeover
Switching voltage level		24 V DC ± 20 %
Switching capacity		max. 100 mA
reaction time		max. 15 ms in addition to the activation delay for DoorScan^®
delay in a de-energized state		max. 15 ms
Adherence to standards and directives
Compliance with directives
	Machinery Directive 2006/42/EC	EN 12978:2003+A1:2009 EN ISO 13849-1:2008 + AC:2009 EN 16005:2012 Chapter 4.6.8
	EMC Regulation 2004/108/EC	EN 61000-6-2:2005 EN 61000-6-3:2007+A1:2011
Compliance with standards
	Standards	EN 61508-1:2010 DIN 18650-1:2010 Chapter 5.7.4 BS 7036-1:1996 Chapter 7.3.2 BS 7036-2:1996 Chapter 8.1
Certifications and approvals
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-30 ... 60 °C (-22 ... 140 °F)
Comparative moisture content		25 ... 95% (non-condensing)
Mechanical characteristics
Protection等级		IP54 (upon installation)
Linkage		plug strip, 6-pin connection, 4-pin relay power supply
Mass		approx. 30 g
Measurements
	Height	30 mm
	Depth	35 mm
	Length	81 mm
