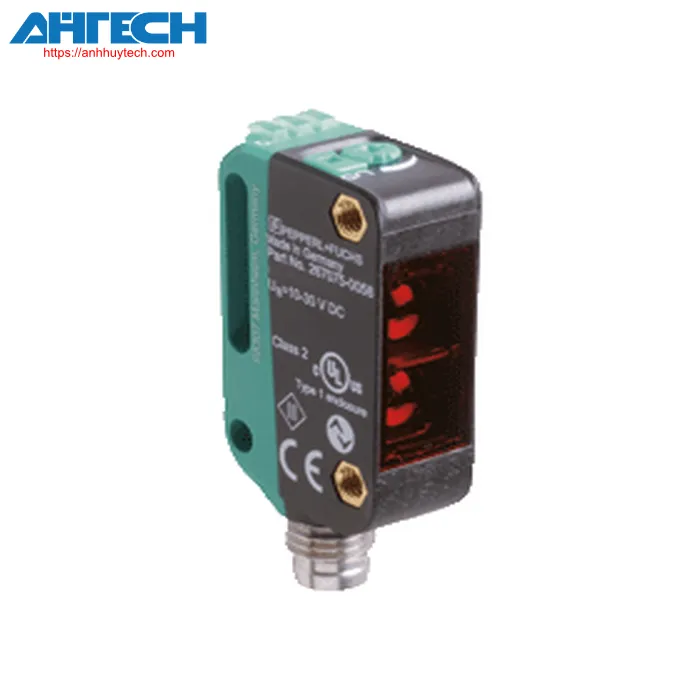

Photoelectric Sensor Pepperl+Fuchs OBD1000-R100-EP-IO-V3

Pepperl+Fuchs Categories

Photoelectric Sensor OBD1000-R100-EP-IO-V3

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OBD1000-R100-EP-IO-V3

Classifications

Item Specification
Diffuse reflection sensor

Overall specifications
Detection distance		2 ... 1000 mm
Minimum detection range		20 ... 50 mm
modification range		50 ... 1000 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum
LED risk category labeling		exemption category
Size of the illumination spot		approx. 65 mm at a distance of 1000 mm
angle of opening		3.7 °
Ambient light threshold		EN 60947-5-2
Parameters related to functional safety
MTTF_d		724 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: always active - power on flashing (4Hz) - short circuit condition flashing with brief interruption (1 Hz) - IO-Link mode
operation indicator		Yellow indicator LED: always active - object identified permanently off - object not recognized
control components		Light-on/dark-on toggle switch
control components		detection range adjuster
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 25 mA at 24 V supply voltage
Ingress protection rating		III
Connection point
Type of interface		IO-Link ( via C/Q = pin 4 )
IO-Link revision		1.1
Device ID		0x110101 (1114369)
data transfer rate		COM2 (38.4 kBit/s)
Minimum cycle time		2.3 ms
process data range		process data entry 1 Bit procedural information output 2 Bit
SIO mode support		yes
Compatible master port classification		A
Output
Type of switch		The sensor features an adjustable switching type. The factory default setting is: C/Q - Pin4: NPN standard open / light-on, PNP standard closed / dark-on, IO-Link
Output signal		1 push-pull (4 in 1) output, short-circuit protection, reverse polarity protection, overvoltage protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
commutation frequency		1000 Hz
reaction time		0.5 ms
Compliance
Communication interface		IEC 61131-9
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		M8 x 1 plug, 3-pin
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 10 g
Measurements
	Height	37.1 mm
	Width	11 mm
	Depth	21.5 mm
