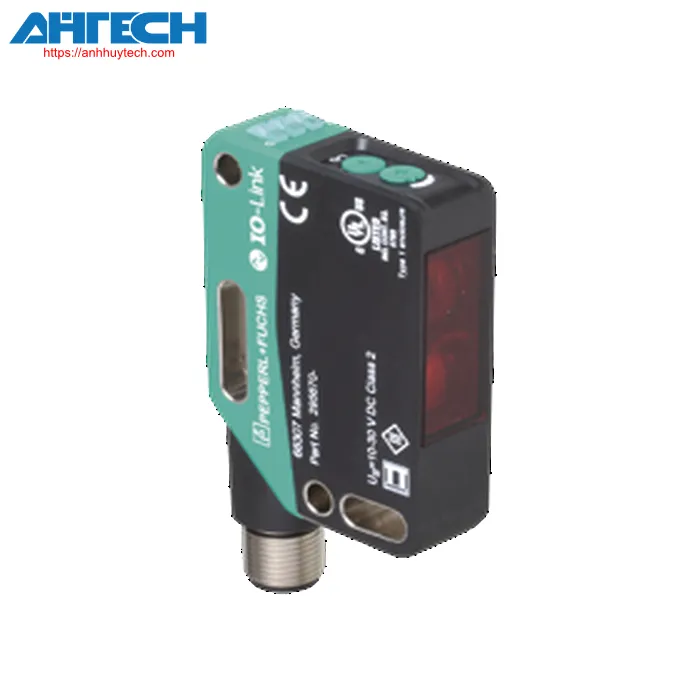

Photoelectric Sensor Pepperl+Fuchs OBD1400-R201-2EP-IO-V1

Pepperl+Fuchs Categories

Photoelectric Sensor OBD1400-R201-2EP-IO-V1

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OBD1400-R201-2EP-IO-V1

Classifications

Item Specification
Diffuse reflection sensor

Overall specifications
Detection distance		2 ... 1400 mm
Minimum detection range		100 ... 200 mm
Maximum detection range		2 ... 1400 mm
modification range		200 ... 1400 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum
LED risk category labeling		exemption category
Size of the illumination spot		approx. 50 mm at a distance of 1400 mm
angle of opening		2 °
Ambient light threshold		EN 60947-5-2 : 60000 Lux
Parameters related to functional safety
MTTF_d		724 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: always active - power on flashing (4Hz) - short circuit condition flashing with brief interruption (1 Hz) - IO-Link mode
operation indicator		Yellow indicator LED: always active - object identified permanently off - object not recognized
control components		Light-on/dark-on toggle switch
control components		detection range adjuster
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 18 mA at 24 V operational voltage
Ingress protection rating		III
Connection point
Type of interface		IO-Link ( via C/Q = pin 4 )
IO-Link revision		1.1
equipment profile		Recognition and troubleshooting Intelligent Sensor model 2.4
Device ID		0x111111 (1118481)
data transfer rate		COM2 (38.4 kBit/s)
Minimum cycle time		2.3 ms
process data range		process data entry 1 Bit procedural information output 2 Bit
SIO mode support		yes
Compatible master port classification		A
Output
Type of switch		The sensor features an adjustable switching type. The factory default setting is: C/Q - Pin4: NPN standard open / light-on, PNP standard closed / dark-on, IO-Link /Q - Pin2: NPN normally closed / dark condition, PNP normally open / light condition
Output signal		2 push-pull (4 in 1) outputs, equipped with short-circuit protection, reverse polarity protection, and overvoltage protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
commutation frequency		1000 Hz
reaction time		0.5 ms
Compliance
Communication interface		IEC 61131-9
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		4-pin, M12 x 1 connector, 90° rotatable
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 47 g
Measurements
	Height	61.7 mm
	Width	15 mm
	Depth	41.7 mm
