Datasheet excerpt: Technical data of OBD300-12GM40-E4

Classifications

Item Specification

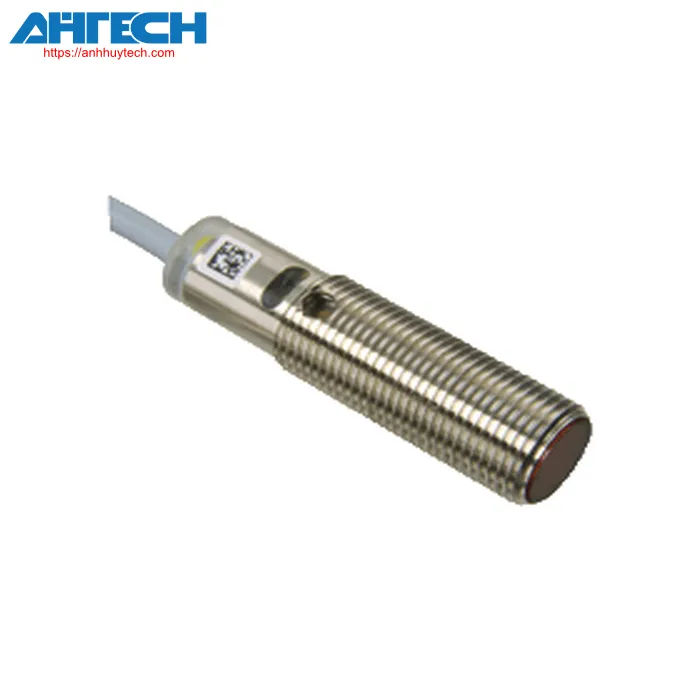

Diffuse reflection sensor with an M12 threaded housing design, constructed from metal, featuring a front optical face, 300 mm detection range, red light source, light/dark on functionality, 1 NPN output, and a permanent cable

Overall specifications
Detection distance		0 ... 300 mm
modification range		20 ... 300 mm
Reference point		typical white 100 mm x 100 mm
illumination source		LED
Illumination type		red , 640 nm
Angular displacement		+/- 2 °
Size of the illumination spot		approximately 20 mm at a distance of 300 mm
angle of opening		approx. 4 °
optical surface		frontal
Ambient light threshold		EN 60947-5-2 10000 Lux
Parameters related to functional safety
MTTF_d		800 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: Power activated
operation indicator		Yellow indicator LED ON: indicates when an object is detected
control components		detection range adjuster
Electrical parameters
Operational voltage		10 ... 30 V DC , class 2
Ripple		10 %
No-load input current		= 15 mA
Input
Control interface		indicator active +UB dark on: 0 V
Output
Type of switch		light/dark electrically switchable
Output signal		1 NPN output, protected against short circuits, safeguarded against reverse polarity, open collector
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
voltage loss		= 2 V
commutation frequency		= 1000 Hz
reaction time		0.5 ms
Compliance
Product specification		EN 60947-5-2
Adherence to standards and directives
Compliance with standards
	Standards	UL 508
Certifications and approvals
UL certification		cULus Certified, Class 2 Power Supply, Type 1 enclosure
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Certifications		CE, cULus Certified 57M3 (Applicable only with UL Class 2 power supply; Type 1 enclosure)
Environmental conditions
Ambient temperature		-30 ... 60 °C (-22 ... 140 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		2 m permanently attached cable
Material
	Housing	brass with a nickel coating
	optical surface	PMMA
Mass		approx. 45 g
Measurements
	Length	45 mm
	Diameter	12 mm
Cable duration		2 m
