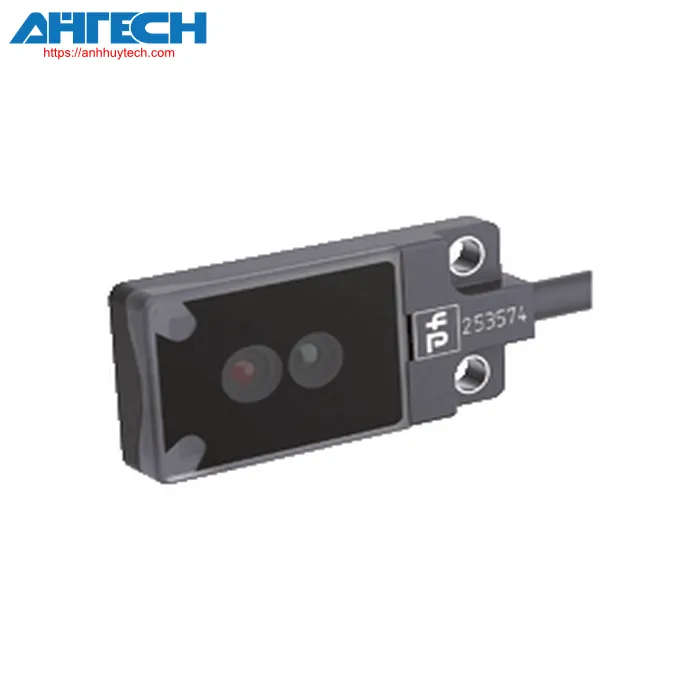

Photoelectric Sensor OBR1500-R2F-E2-L

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OBR1500-R2F-E2-L

Classifications

Item Specification
Retroreflective detector, slim design, compact M2 mounting, 1500 mm detection range, red illumination, dark activated, PNP output, permanent cable

Overall specifications
Operational sensing range		0 ... 1500 mm
reflector spacing		60 ... 1500 mm
detection range threshold		1800 mm
Reference point		H40 reflector lens
illumination source		LASER LIGHT
Illumination type		modulated red light in the visible spectrum , 680 nm
polarizing filter		yes
Laser specified ratings
	Note	LASER LIGHT , DO NOT STARE INTO BEAM
	Laser category	1
	Wavelength	680 nm
	Beam spreading	> 5 mrad
	pulse duration	approx. 3 µs
	Repetition frequency	approx. 16.6 kHz
	maximum pulse energy	8 nJ
Angular displacement		approx. 0.5 °
Item dimensions		typ. begins at 1.5 mm
Size of the illumination spot		approximately 25 mm at a range of 1500 mm
angle of opening		approx. 1 °
optical surface		frontal
Ambient light threshold		EN 60947-5-2 : 30000 Lux
Parameters related to functional safety
MTTF_d		800 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green, continuously illuminated Power on, short-circuit: LED green blinking (approximately 4 Hz)
operation indicator		Transducer: yellow LED, illuminates when the light beam is unobstructed, blinks when the functioning reserve is low; OFF when the light beam is blocked
Electrical parameters
Operational voltage		12 ... 24 V
No-load input current		< 10 mA
Ingress protection rating		III
Output
Type of switch		Non-contact / activated state
Output signal		1 PNP output, safeguarded against short circuits, protected against reverse polarity, open collector
Switching voltage level		max. 30 V DC
Switching capacity		max. 50 mA, resistive load
voltage loss		= 1.5 V DC
commutation frequency		approx. 2 kHz
reaction time		250 µs
Compliance
Product specification		EN 60947-5-2
Laser safety		EN 60825-1:2007
Certifications and approvals
UL certification		E87056, cULus Recognized, Class 2 Power Supply
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
FDA certification		IEC 60825-1:2007 conforms with 21 CFR 1040.10 and 1040.11, excluding deviations as stated in Laser Notice No. 50, dated June 24, 2007
Environmental conditions
Ambient temperature		-10 ... 60 °C (14 ... 140 °F)
Ambient storage temperature		-20 ... 70 °C (-4 ... 158 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		2 m permanently attached cable
Material
	Housing	PC (PC (polycarbonate)) and Stainless Steel
	optical surface	PMMA
	Cable	PUR
Mass		approx. 20 g
Fastening torque for securing screws		0.25 Nm
Measurements
	Height	25.5 mm
	Width	12 mm
	Depth	4.1 mm
Cable duration		2 m
