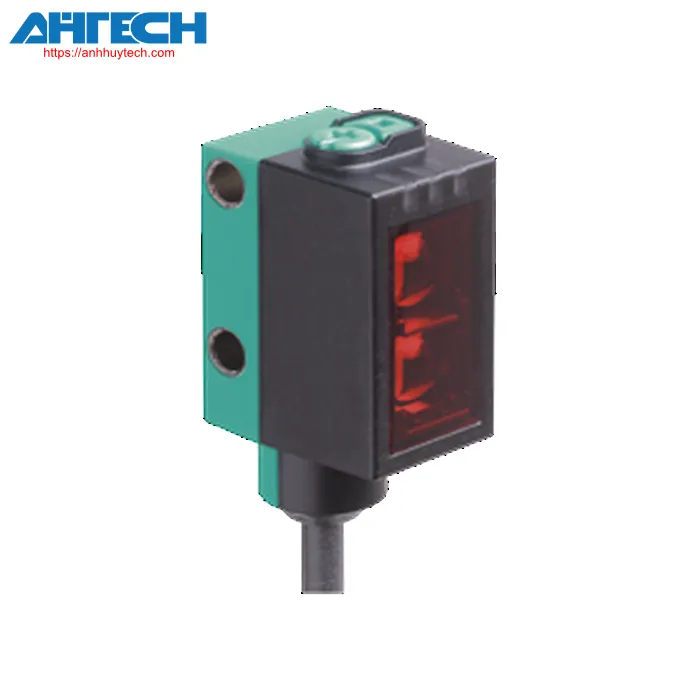

Photoelectric Sensor OBR7500-R101-E5-0,3M-V1

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OBR7500-R101-E5-0,3M-V1

Classifications

Item Specification
Retroreflective detector featuring a polarization filter

Overall specifications
Operational sensing range		0 ... 7.5 m
reflector spacing		0.03 ... 7.5 m
detection range threshold		10 m
Reference point		H85-2 reflective surface
illumination source		LED
Illumination type		modulated red light in the visible spectrum
LED risk category labeling		exemption category
polarizing filter		yes
Size of the illumination spot		approximately 65 mm at a range of 1 m
angle of opening		3.7 °
Ambient light threshold		EN 60947-5-2
Parameters related to functional safety
MTTF_d		724 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		Green indicator LED: Constantly illuminated - power activated Flashing (4 Hz) - short circuit
operation indicator		Yellow LED: Constantly illuminated - unobstructed light path Permanently off - entity detected Flashing (4 Hz) - inadequate operational reserve
control components		Light-on/dark-on toggle switch
control components		Sensitivity calibration
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 25 mA at 24 V supply voltage
Ingress protection rating		III
Output
Type of switch		The sensor features an adjustable switching type. The factory default setting is: Q - Pin4: PNP normally open / dark-activated n.c. - Pin2: open
Output signal		1 PNP, safeguarded against short circuits, protected from reverse polarity
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
commutation frequency		1000 Hz
reaction time		0.5 ms
Compliance
Communication interface		IEC 61131-9
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F), cable, stationary installation -25 ... 60 °C (-13 ... 140 °F), flexible cable unsuitable for conveyor chains
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		300 mm stationary cable featuring an M12 x 1, 4-pin connector
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 21 g
Measurements
	Height	33.8 mm
	Width	13.9 mm
	Depth	18.3 mm
Cable duration		0.3 m
