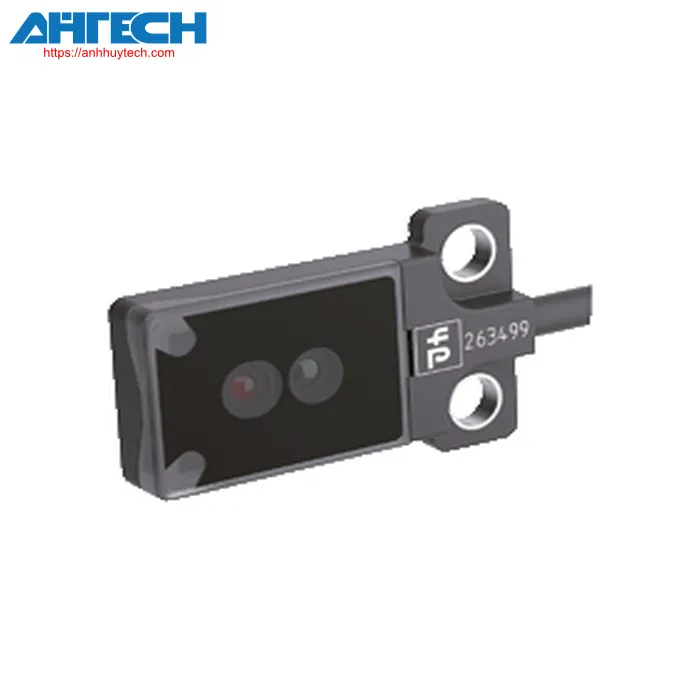

Photoelectric Sensor OBT30-R3F-E2-0,2M-V31

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OBT30-R3F-E2-0,2M-V31

Classifications

Item Specification
Triangulation sensor incorporating background suppression for standard applications, flat design, M3 mounting, 30 mm sensing range, red light, light ON, PNP output, provided with a 0.2 m permanently attached cable and M8 plug, 4-pin

Overall specifications
Detection distance		1 ... 30 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum , 630 nm
LED risk category labeling		exemption category
Black-white contrast (6 %/90 %)		< 20 % at 30 mm
Angular displacement		approx. 2 °
Item dimensions		typ. commences at 0.1 mm @ 16 mm
Size of the illumination spot		approx. 5.5 mm at a distance of 30 mm
angle of opening		approx. 5 °
optical surface		frontal
Ambient light threshold		EN 60947-5-2 : 25000 Lux
Parameters related to functional safety
MTTF_d		800 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green, continuously illuminated Power on, short-circuit: LED green blinking (approximately 4 Hz)
operation indicator		Yellow indicator LED ON: indicates when an object is detected
Electrical parameters
Operational voltage		10 ... 30 V DC
No-load input current		< 15 mA
Ingress protection rating		III
Output
Type of switch		Non-contact / light activated
Output signal		1 PNP output, safeguarded against short circuits, protected against reverse polarity, open collector
Switching voltage level		max. 30 V DC
Switching capacity		max. 50 mA, resistive load
voltage loss		= 1.5 V DC
commutation frequency		approx. 1 kHz
reaction time		500 µs
Compliance
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		E87056, cULus Recognized, Class 2 Power Supply
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-20 ... 60 °C (-4 ... 140 °F)
Ambient storage temperature		-20 ... 70 °C (-4 ... 158 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		200 mm permanent cable with 4-pin, M8x1 connector
Material
	Housing	PC (PC (polycarbonate)) and Stainless Steel
	optical surface	PMMA
	Cable	PUR
Mass		approx. 10 g
Fastening torque for securing screws		1 Nm
Measurements
	Height	25.5 mm
	Width	16 mm
	Depth	4.1 mm
Cable duration		200 mm
