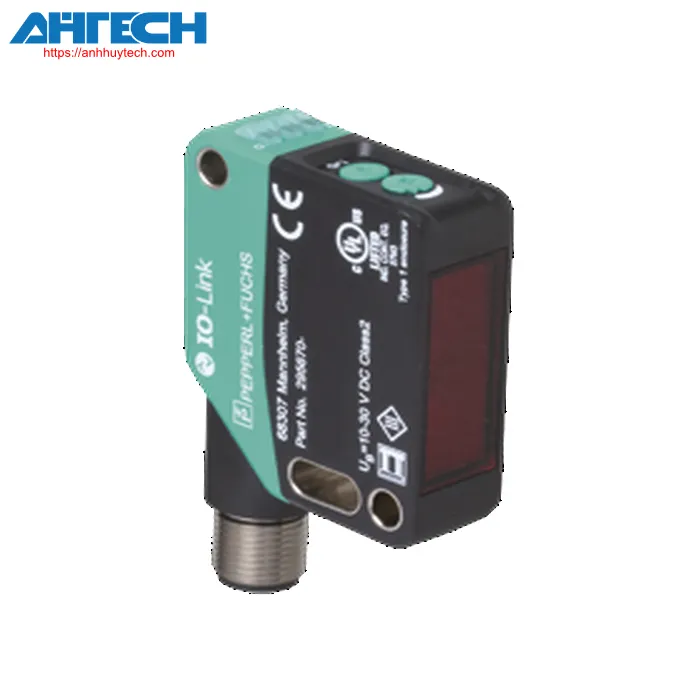

Photoelectric Sensor Pepperl+Fuchs OBT300-R200-E5-IO-V1

Pepperl+Fuchs Categories

Photoelectric Sensor OBT300-R200-E5-IO-V1

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OBT300-R200-E5-IO-V1

Classifications

Item Specification
Triangulation sensor featuring background elimination

Overall specifications
Detection distance		30 ... 300 mm
Minimum detection range		30 ... 80 mm
Maximum detection range		30 ... 300 mm
modification range		80 ... 300 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum
LED risk category labeling		exemption category
Black-white contrast (6 %/90 %)		< 5 % at 300 mm
Size of the illumination spot		approximately 8 mm x 8 mm at a range of 300 mm
angle of opening		approx. 1.5 °
Ambient light threshold		EN 60947-5-2 : 70000 Lux
Parameters related to functional safety
MTTF_d		600 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: always active - power on flashing (4Hz) - short circuit condition flashing with brief interruption (1 Hz) - IO-Link mode
operation indicator		Yellow indicator LED: always active - object identified permanently off - object not recognized
control components		Light-on/dark-on toggle switch
control components		detection range adjuster
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 26 mA at 24 V supply voltage
Ingress protection rating		III
Connection point
Type of interface		IO-Link ( via C/Q = pin 4 )
IO-Link revision		1.1
equipment profile		Recognition and troubleshooting Intelligent Sensor model 2.4
Device ID		0x111606 (1119750)
data transfer rate		COM2 (38.4 kBit/s)
Minimum cycle time		2.3 ms
process data range		process data entry 1 Bit procedural information output 2 Bit
SIO mode support		yes
Compatible master port classification		A
Output
Type of switch		The sensor features an adjustable switching type. The factory default setting is: C/Q - BK: PNP type normally open / light-active, IO-Link
Output signal		1 PNP, safeguarded against short circuits, protected from reverse polarity
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
commutation frequency		500 Hz
reaction time		1 ms
Compliance
Communication interface		IEC 61131-9
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		4-pin, M12 x 1 connector, 90° rotatable
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 37 g
Measurements
	Height	50.6 mm
	Width	15 mm
	Depth	41.7 mm
