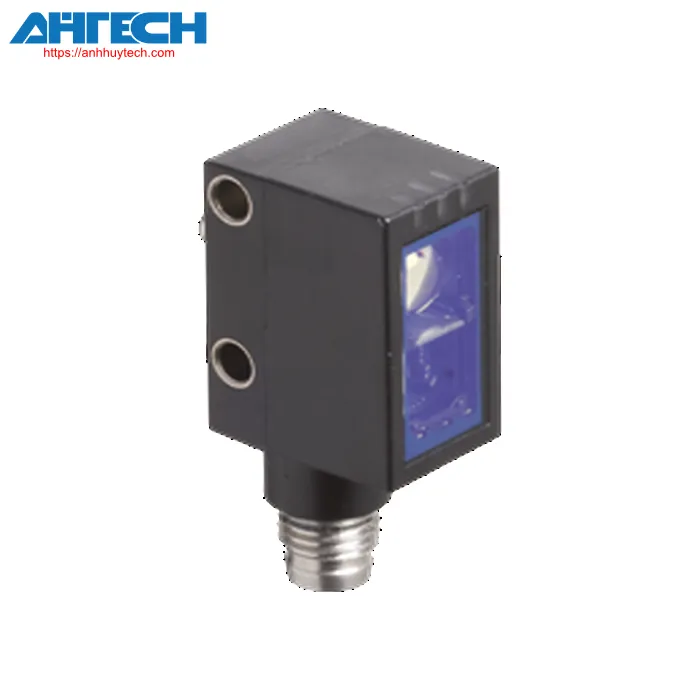

Photoelectric Sensor OBT40-R102-A0-V31
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of OBT40-R102-A0-V31
| Item Specification | ||
|---|---|---|
| Triangulation sensor featuring background elimination | ||
| Overall specifications | ||
|---|---|---|
| Detection distance | 10 ... 40 mm | |
| Maximum detection range | 10 ... 50 mm | |
| Background elimination | begins at 50 mm | |
| Reference point | typical white, 100 mm x 100 mm | |
| illumination source | LED | |
| Illumination type | modulated red light in the visible spectrum | |
| LED risk category labeling | exemption category | |
| Black-white contrast (6 %/90 %) | approx. 1 mm | |
| Size of the illumination spot | approx. 3 mm at 40 mm | |
| angle of opening | approx. 5 ° | |
| Ambient light threshold | EN 60947-5-2 : 40000 Lux | |
| Parameters related to functional safety | ||
| MTTFd | 600 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| Operational status indicator | Green indicator LED: Constantly illuminated - power activated Flashing (4 Hz) - short circuit |
|
| operation indicator | Yellow indicator LED: always active - object identified permanently off - object not recognized |
|
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| Ripple | max. 10 % | |
| No-load input current | < 25 mA at 24 V supply voltage | |
| Ingress protection rating | III | |
| Output | ||
| Type of switch | Q - Pin4: NPN normally open / activated light /Q - Pin2: NPN normally closed / dark-on |
|
| Output signal | 2 NPN, protected against short circuits, safeguarded from reverse polarity, open collector | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 100 mA, resistive load | |
| Usage category | DC-12 and DC-13 | |
| voltage loss | = 1.5 V DC | |
| commutation frequency | 500 Hz | |
| reaction time | 1 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| UL certification | E87056, cULus Certified, Class 2 power supply, type rating 1 | |
| Environmental conditions | ||
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
|
| Ambient storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP67 / IP69 / IP69K | |
| Linkage | M8 x 1 socket, 4-pin | |
| Material | ||
| Housing | PC (PC (polycarbonate)) | |
| optical surface | Annealed glass | |
| Mass | approx. 10 g | |
| Measurements | ||
| Height | 31.9 mm | |
| Width | 13.9 mm | |
| Depth | 18.3 mm | |
Download Specification for OBT40-R102-A0-V31
