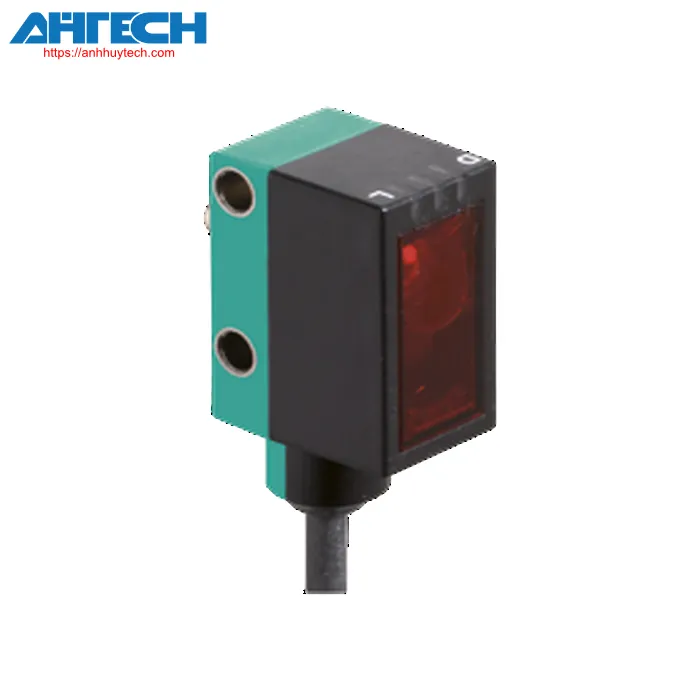

Photoelectric Sensor OBT60-R101-2P1-IO

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OBT60-R101-2P1-IO

Classifications

Item Specification
Triangulation sensor featuring background elimination

Overall specifications
Detection distance		10 ... 60 mm
Maximum detection range		10 ... 80 mm
Background elimination		begins at 80 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum
LED risk category labeling		exemption category
Black-white contrast (6 %/90 %)		approx. 3 mm
Size of the illumination spot		approx. 4 mm at 60 mm
angle of opening		approx. 5 °
Ambient light threshold		EN 60947-5-2 : 40000 Lux
Parameters related to functional safety
MTTF_d		600 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: always active - power on flashing (4Hz) - short circuit condition flashing with brief interruption (1 Hz) - IO-Link mode
operation indicator		Yellow indicator LED: always active - object identified permanently off - object not recognized
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 25 mA at 24 V supply voltage
Ingress protection rating		III
Connection point
Type of interface		IO-Link ( via C/Q = BK )
IO-Link revision		1.1
equipment profile		intelligent sensor
Device ID		0x110505 (1115397)
data transfer rate		COM2 (38.4 kBit/s)
Minimum cycle time		2.3 ms
process data range		process data entry 1 Bit procedural information output 2 Bit
SIO mode support		yes
Compatible master port classification		A
Output
Type of switch		C/Q - Pin4: NPN default closed / dark-on, PNP default open / light-on, IO-Link /Q - Pin2: NPN normally open / light activated, PNP normally closed / dark activated
Output signal		2 push-pull (4 in 1) outputs, equipped with short-circuit protection, reverse polarity protection, and overvoltage protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
commutation frequency		500 Hz
reaction time		1 ms
Compliance
Communication interface		IEC 61131-9
Product specification		EN 60947-5-2
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
Environmental conditions
Ambient temperature		-40 ... 60 °C (-40 ... 140 °F), cable, stationary installation -25 ... 60 °C (-13 ... 140 °F), flexible cable unsuitable for conveyor chains
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		2 m permanently attached cable
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 36 g
Measurements
	Height	31.9 mm
	Width	13.9 mm
	Depth	18.3 mm
Cable duration		2 m
