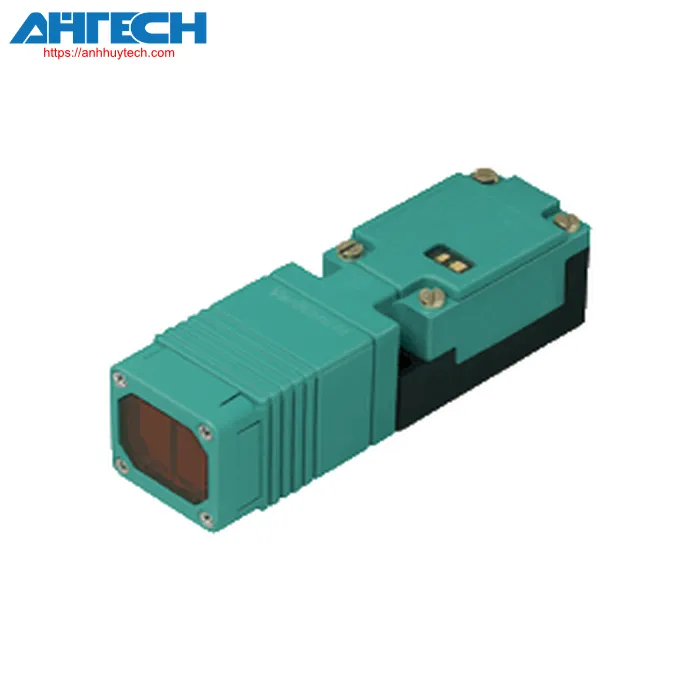

Photoelectric Sensor Pepperl+Fuchs OJ3000-M1K-E23
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of OJ3000-M1K-E23
| Item Specification | ||
|---|---|---|
| Retroreflective detector featuring a polarization filter | ||
| Overall specifications | ||
|---|---|---|
| Operational sensing range | 0 ... 3000 mm | |
| reflector spacing | 200 ... 3000 mm | |
| detection range threshold | 6 m | |
| Reference point | reflector C110-2 | |
| illumination source | LED | |
| Illumination type | modulated red light in the visible spectrum | |
| polarizing filter | yes | |
| Ambient light threshold | 10000 Lux | |
| Indicators/operation controls | ||
| Operational status indicator | LED green | |
| operation indicator | Yellow indicator LED: status of switching LED red: functioning reserve (pulsing) |
|
| control components | programming switch: light-on/dark-on toggle switch choice of functioning frequency determination of the switching frequency pulse extension functioning reserve dynamic/static |
|
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| Ripple | 10 % | |
| No-load input current | = 35 mA | |
| Output | ||
| Stability fault indication output | 1 PNP, triggered when there is a reduction in functioning reserve | |
| Type of switch | switchable light/dark mode | |
| Output signal | 1 PNP output, safeguarded against short circuits, protected against reverse polarity, open collector | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | = 200 mA | |
| voltage loss | = 2.5 V | |
| commutation frequency | = 1.5 kHz / 200 Hz switchable | |
| reaction time | 2.5 ms by 200 kHz , 0.3 ms at 1.5 kHz | |
| Timing feature | pulse extension 20 ms, selectable | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Certifications | CE | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -40 ... 80 °C (-40 ... 176 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP67 | |
| Linkage | M16 terminal chamber, core cross-section = 2.5 mm2 | |
| Material | ||
| Housing | PBT | |
| optical surface | Mineral glass lens with scratch resistance | |
| Mass | 100 g | |
| Measurements | ||
| Height | 30 mm | |
| Width | 30 mm | |
| Depth | 102 mm | |
