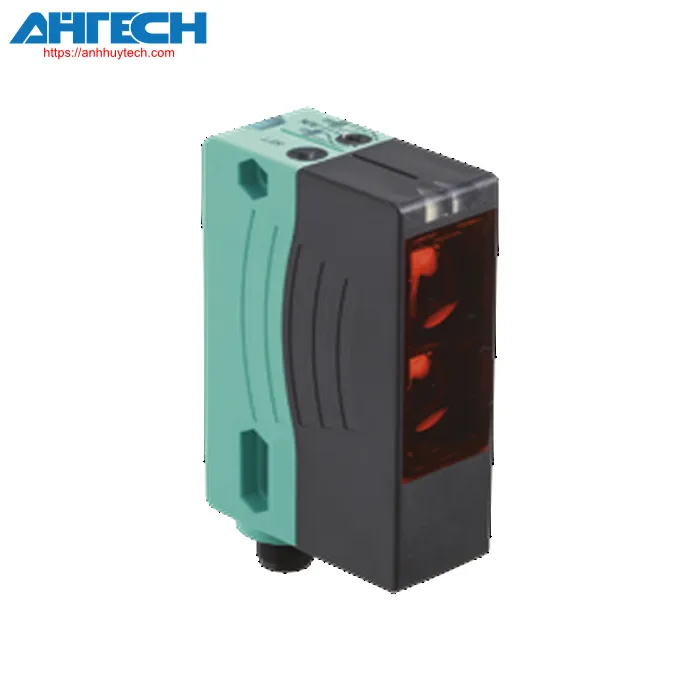

Photoelectric Sensor OMD8000-R300-IEP-V1-L

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OMD8000-R300-IEP-V1-L

Classifications

Item Specification
Proximity switch (PRT)

Overall specifications
Detection distance		0.03 ... 8 m
modification range		0.05 ... 8 m
Reference point		Kodak white (90%)
Illumination type		modulated red light in the visible spectrum
Laser specified ratings
	Note	LASER LIGHT , DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
	Laser category	1M
	Wavelength	660 nm
	Beam spreading	< 25 mrad
	pulse duration	4 ns
	Repetition frequency	250 kHz
	maximum pulse energy	< 2.4 nJ
Black-white contrast (6 %/90 %)		< 0.5 %
Angular displacement		max. ± 2°
Measurement technique		Pulse Ranging Technology (PRT)
Size of the illumination spot		vertical 60 mm, horizontal 30 mm at a range of 2 m
Ambient light threshold		50000 Lux
Accuracy		12 bit, but > 0.5 mm
Parameters related to functional safety
MTTF_d		100 a
task duration (T_M)		10 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green
operation indicator		2 yellow LEDs for status indication
learning confirmation indicator		Teach-In: LED green/yellow alternating flash; 2.5 Hz Teach Error: LED green/yellow alternating flashing; 8.0 Hz
control components		5-position rotary switch for selecting functioning modes (threshold configuration and mode selection)
control components		Selector for configuring the threshold values
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		10 % within the supply tolerance
No-load input current		= 80 mA / 24 V DC
Delay time prior to availability		< 0.7 s, for temperatures <-30°C adherence to the specification is required 5 mins after powering on
Output
Output signal		1 push-pull (4 in 1) output, equipped with short-circuit protection, reverse polarity protection, and overvoltage protection; 1 analog output 4 ... 20 mA, featuring short-circuit/overload protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA
Output measurement		1 analog output 4 ... 20 mA ; Rmax = 470 O
commutation frequency		50 Hz
reaction time		5 ms
Compliance
Product specification		EN 60947-5-2
Laser safety		EN 60825-1:2014
Measurement precision
Repeatability accuracy		< 5 mm
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
FDA certification		IEC 60825-1:2014 meets the requirements of 21 CFR 1040.10 and 1040.11, excluding deviations as outlined in Laser Notice No. 50, dated June 24, 2007
Environmental conditions
Ambient temperature		-40 ... 55 °C (-40 ... 131 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		4-pin, M12 x 1 connector
Material
	Housing	Plastic ABS
	optical surface	PMMA
Mass		90 g
Measurements
	Height	88 mm
	Width	25.8 mm
	Depth	54.3 mm
