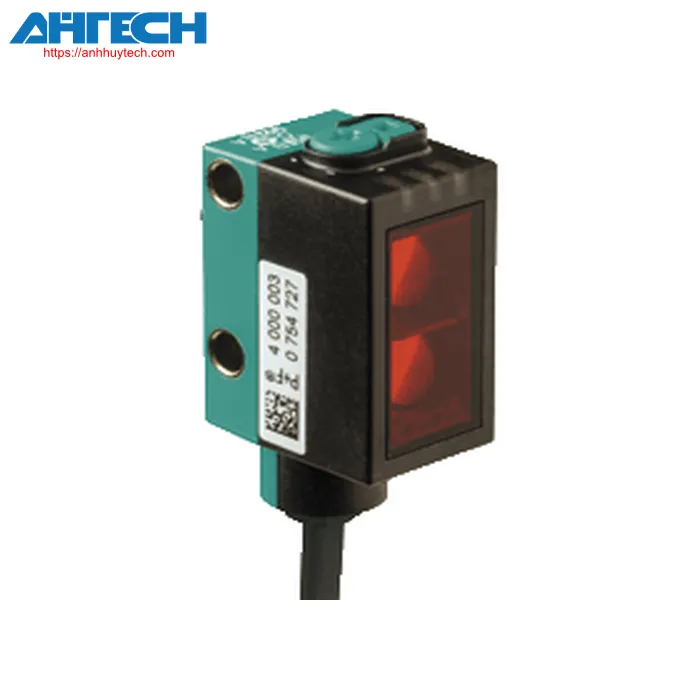

Photoelectric Sensor OMT50-R101-2EP-IO-0,3M-V31

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of OMT50-R101-2EP-IO-0,3M-V31

Classifications

Item Specification
Measurement to target, 50 mm detection range, red illumination, measured value transmitted via IO-Link, 2 x push-pull output, permanent cable with M8 coupling

Overall specifications
Measurement range		20 ... 50 mm
Reference point		typical white, 100 mm x 100 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum
LED risk category labeling		exemption category
Angular displacement		max. +/- 1.5 °
Size of the illumination spot		approximately 4 mm at a separation of 50 mm
angle of opening		4 °
Ambient light threshold		EN 60947-5-2 : 30000 Lux
Accuracy		0.01 mm
Parameters related to functional safety
MTTF_d		600 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
Operational status indicator		LED green: always active - power on flashing (4Hz) - short circuit condition flashing with brief interruption (1 Hz) - IO-Link mode
operation indicator		Yellow indicator LED: permanently on - output switch is active permanently off - switch output not active
control components		learning key
control components		5-position rotary switch for selecting functioning modes
Electrical parameters
Operational voltage		10 ... 30 V DC
Ripple		max. 10 %
No-load input current		< 25 mA at 24 V supply voltage
Ingress protection rating		III
Connection point
Type of interface		IO-Link ( via C/Q = pin 4 )
IO-Link revision		1.1
equipment profile		intelligent sensor
Device ID		0x110901 (1116417)
data transfer rate		COM2 (38.4 kBit/s)
Minimum cycle time		3 ms
process data range		process data entry 3 Byte procedural information output 2 Bit
SIO mode support		yes
Compatible master port classification		A
Output
Type of switch		The factory configuration is: C/Q - Pin4: NPN normally open, PNP normally closed, IO-Link Q2 - Pin2: NPN open by default, PNP closed by default
Output signal		2 push-pull (4 in 1) outputs, equipped with short-circuit protection, reverse polarity protection, and overvoltage protection
Switching voltage level		max. 30 V DC
Switching capacity		max. 100 mA, resistive load
Usage category		DC-12 and DC-13
voltage loss		= 1.5 V DC
reaction time		2 ms
Compliance
Communication interface		IEC 61131-9
Product specification		EN 60947-5-2
Measurement precision
Temperature variation		20 µm/K
heating period		5 min
Repeatability accuracy		= 0.15 mm
Non-linearity error		± 0.3 mm
Certifications and approvals
UL certification		E87056, cULus Certified, Class 2 power supply, type rating 1
Environmental conditions
Ambient temperature		10 ... 60 °C (50 ... 140 °F)
Ambient storage temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级		IP67 / IP69 / IP69K
Linkage		permanent cable 300 mm featuring M8 x 1 male connector; 4-pin
Material
	Housing	PC (PC (polycarbonate))
	optical surface	PMMA
Mass		approx. 17 g
Measurements
	Height	41.4 mm
	Width	13.9 mm
	Depth	18.3 mm
Cable duration		0.3 m
