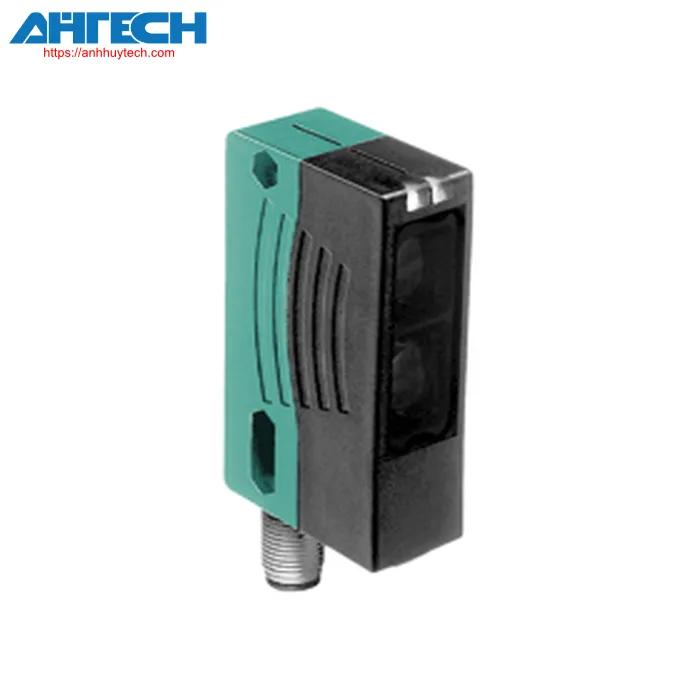

Photoelectric Sensor Pepperl+Fuchs RL29-55-V/73c/136
Pepperl+Fuchs Categories
Photoelectric Sensor RL29-55-V/73c/136
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of RL29-55-V/73c/136
| Item Specification | ||
|---|---|---|
| Retroreflective detector featuring a polarization filter | ||
| Overall specifications | ||
|---|---|---|
| Operational sensing range | 0.4 ... 6 m | |
| detection range threshold | 8 m | |
| Reference point | H85 reflective component | |
| illumination source | LED, 660 nm | |
| Illumination type | modulated red light in the visible spectrum | |
| polarizing filter | yes | |
| Size of the illumination spot | approximately 130 mm at a range of 6 m | |
| angle of opening | Emitter: 1.2 ° , Transducer: 2 ° | |
| Ambient light threshold | 80000 Lux | |
| Parameters related to functional safety | ||
| MTTFd | 1982.2 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| operation indicator | Yellow indicator LED, light with an unobstructed light beam, blinks when the functioning reserve is insufficient | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC , class 2 | |
| Ripple | 10 % | |
| No-load input current | = 30 mA | |
| Output | ||
| Type of switch | dark-on | |
| Output signal | 2 push-pull (4 in 1) outputs, safeguarded against short circuits, protected from reverse polarity | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 100 mA | |
| commutation frequency | 500 Hz | |
| reaction time | 1 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| EAC compliance | TR CU 020/2011 | |
| UL certification | cULus Certified, Class 2 Power Supply, Type 1 enclosure | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Certifications | CE, cULus Certified 57M3 (Applicable only with UL Class 2 power supply; Type 1 enclosure) | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) | |
| Ambient storage temperature | -40 ... 75 °C (-40 ... 167 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP65 | |
| Linkage | M12 x 1 plastic connector, 4-pin | |
| Material | ||
| Housing | Plastic ABS | |
| optical surface | plastic | |
| Mass | 70 g | |
| Measurements | ||
| Height | 88 mm | |
| Width | 25.8 mm | |
| Depth | 54.3 mm | |
Download Specification for RL29-55-V/73c/136
Download PDF
