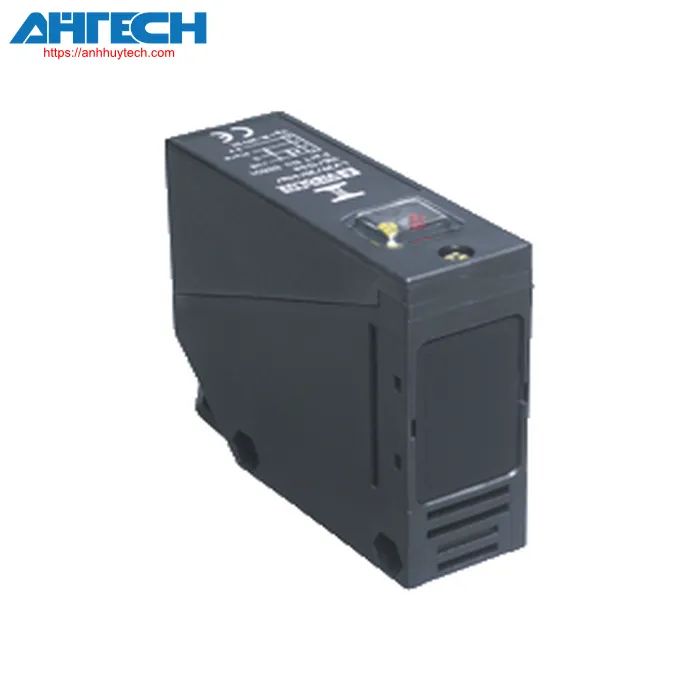

Photoelectric Sensor Pepperl+Fuchs RL39-55/30/35/40a/116/126a
Pepperl+Fuchs Categories
Photoelectric Sensor RL39-55/30/35/40a/116/126a
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of RL39-55/30/35/40a/116/126a
| Item Specification | ||
|---|---|---|
| Retroreflective detector lacking a polarization filter | ||
| Overall specifications | ||
|---|---|---|
| Operational sensing range | 0 ... 17 m | |
| reflector spacing | 0.1 ... 17 m | |
| detection range threshold | 20 m | |
| Reference point | H50 reflective element | |
| illumination source | LED red | |
| Illumination type | modulated red light in the visible spectrum | |
| polarizing filter | no | |
| Ambient light threshold | IEC / EN 60947-5-2 , 10000 Lux | |
| Parameters related to functional safety | ||
| MTTFd | 800 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| operation indicator | Yellow indicator LED: status of switching LED red: pre-failure alert |
|
| control components | Detection distance calibrator, light-on/dark-on toggle switch | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC | |
| Ripple | 10 % | |
| No-load input current | = 20 mA | |
| Delay time prior to availability | = 300 ms | |
| Output | ||
| Stability fault indication output | 1 NPN, activated when there is a decrease in functioning reserve | |
| Type of switch | light/dark on | |
| Output signal | 1 NPN output, protected against short circuits, safeguarded against reverse polarity, open collector | |
| Switching voltage level | max. 30 V DC | |
| Switching capacity | max. 200 mA, resistive load | |
| voltage loss | = 3 V | |
| commutation frequency | = 300 Hz | |
| reaction time | = 1.5 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| Certifications | CE | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 55 °C (-13 ... 131 °F) | |
| Ambient storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP54 | |
| Linkage | terminal chamber PG9, = 0.75 mm2 | |
| Material | ||
| Housing | PBT | |
| optical surface | PMMA | |
| Mass | approx. 100 g | |
| Measurements | ||
| Height | 64 mm | |
| Width | 25 mm | |
| Depth | 75 mm | |
| Overview information | ||
| Contents of shipment | Mounting assistance, reflector | |
