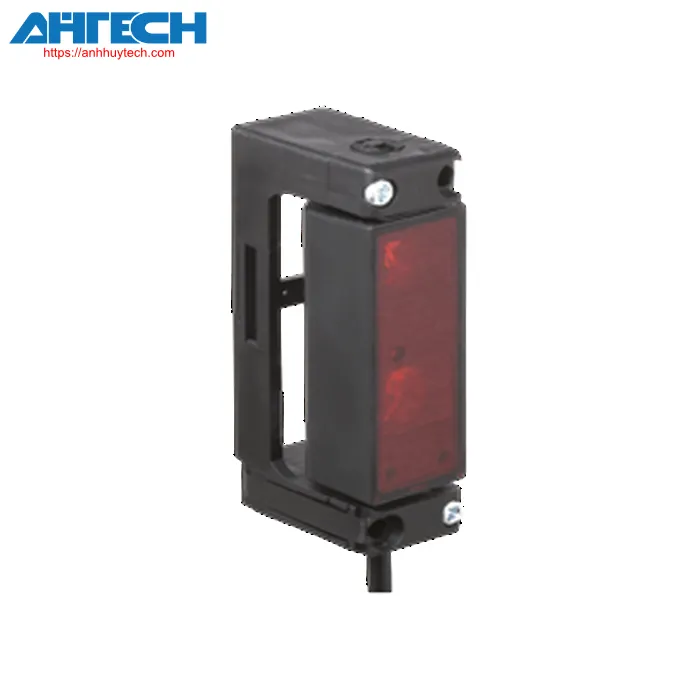

Photoelectric Sensor RL81-54/25/76b/103/115

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo  Contact via Zalo Phone call  Phone call
Share on:
Description Download Accessories

Datasheet excerpt: Technical data of  RL81-54/25/76b/103/115

Classifications

Item Specification
Retroreflective detector featuring a polarization filter
Overall specifications
Operational sensing rangeREF-H88x25 0 ... 6 m
REF-H88x50 0 ... 12 m
reflector spacingREF-H88x25 2.6 ... 10 m
REF-H88x50 2.5 ... 15.5 m
detection range thresholdREF-H88x25 10 m
REF-H88x50 15.5 m
Reference pointREF-H88x25
illumination sourceLED
Illumination typemodulated red light in the visible spectrum , 640 nm
Size of the illumination spotapproximately 200 mm at a separation of 6 m
angle of opening3 °
Ambient light thresholdEN 60947-5-2 10000 Lux
Parameters related to functional safety
task duration (TM)20 a
Diagnostic Range (DC)0 %
Indicators/operation controls
operation indicatorYellow indicator LED
Electrical parameters
Operational voltage10 ... 30 V
Ripple10 %
No-load input current= 10 mA
Delay time prior to availability< 300 ms
Input
Verification inputemitter shutdown at 0 V and if the test input remains unconnected
Output
Type of switchlight-on
Output signal1 PNP, protected against short circuits, open-collector output
Switching voltage levelmax. 30 V DC
Switching capacitymax. 100 mA
voltage loss= 1.5 V
reaction timeLight beam clear to light beam blocked: 10 ms
Light beam interrupted to light beam clear: 80 ms
Compliance
Product specificationEN 60947-5-2
Certifications and approvals
CCC certificationCCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature-30 ... 60 °C (-22 ... 140 °F)
Ambient storage temperature-40 ... 70 °C (-40 ... 158 °F)
Mechanical characteristics
Protection等级IP65
Linkage2-meter PVC cable
Material
HousingPC (polycarbonate)
optical surfacePMMA
Massapprox. 155 g
Measurements
Height87 mm
Width25 mm
Depth42.5 mm

Download Specification for RL81-54/25/76b/103/115

Download PDF
