Photoelectric Sensor Pepperl+Fuchs RMS-M-RC

Pepperl+Fuchs Categories

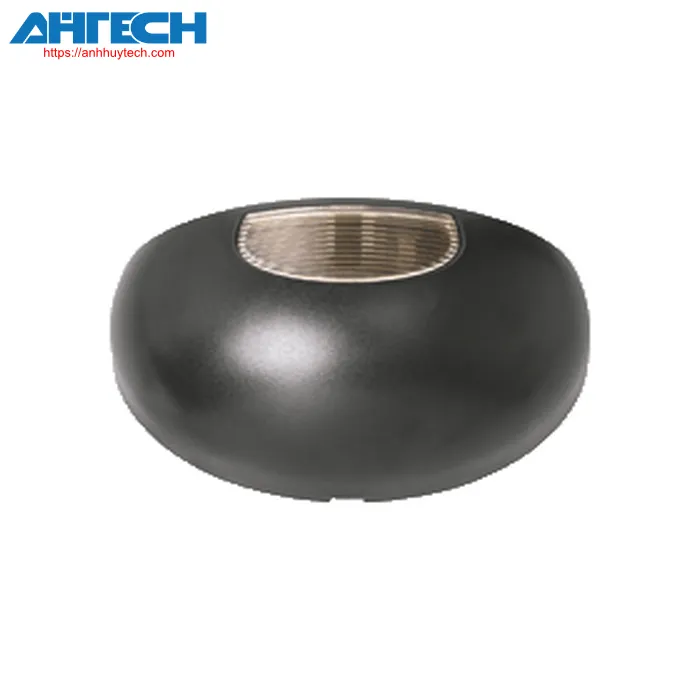

Photoelectric Sensor RMS-M-RC

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of RMS-M-RC

Classifications

Item Specification
Premium radar motion sensor featuring basic functionality, capable of remote operation, detection range of 4.5 m x 2 m, maximum installation height of 4 m, housed in black, with relay contact output and cable connection

Overall specifications
detection range		Measurements: 2000 x 4500 mm (D x W) at a mounting height of 2200 mm and an inclination angle of 30° narrow: 4500 x 2000 mm (D x W) at a mounting height of 2200 mm and an inclination angle of 30°
functioning principle		Microwave component
Detection rate		min. 0.1 m/s
adjustment angle		0 ... 40 ° in 5 ° steps
Operating frequency range		24.15 ... 24.25 GHz K-Band
Operation mode		Radar-based motion detector
Transmitter emitted power (EIRP)		< 20 dBm
Parameters related to functional safety
MTTF_d		850 a
task duration (T_M)		20 a
Diagnostic Range (DC)		0 %
Indicators/operation controls
operation indicator		LED red/green indicator
control components		variable resistor and programming button for configuration: Linkage method, dropout duration, response interval, interference characteristics
control components		Sensitivity calibration
control components		Programming via menu driven remote control possible (Accessories ordered separately)
Electrical parameters
Operational voltage		12 ... 36 V DC , 12 ... 24 V AC
No-load input current		= 50 mA at 24 V DC
Energy usage		= 1 W
Output
Type of switch		NO/NC
Output signal		relay
Switching voltage level		max. 48 V AC / 48 V DC
Switching capacity		max. 0.5 A AC / 1 A DC
Conversion power		max. 24 W / 60 VA
delay in a de-energized state		0.2 ... 10 s customizable (1 sec default configuration)
Certifications and approvals
CE compliance		2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed.
FCC certification		No - Usage in North America is not allowed
Environmental conditions
Functional temperature range		-20 ... 60 °C (-4 ... 140 °F)
Ambient storage temperature		-30 ... 70 °C (-22 ... 158 °F)
Comparative moisture content		max. 90% non-condensing
Mechanical characteristics
mounting height		max. 4000 mm
Protection等级		IP54
Linkage		4-pin plug-in screw terminals, 5 m connection cable included with the delivery
Material
	Housing	ABS, dark gray
Mass		120 g
Measurements		123 mm x 65 mm x 57 mm
	Height	65 mm
	Width	123 mm
	Depth	57 mm
Suitable series
Series		RMS
