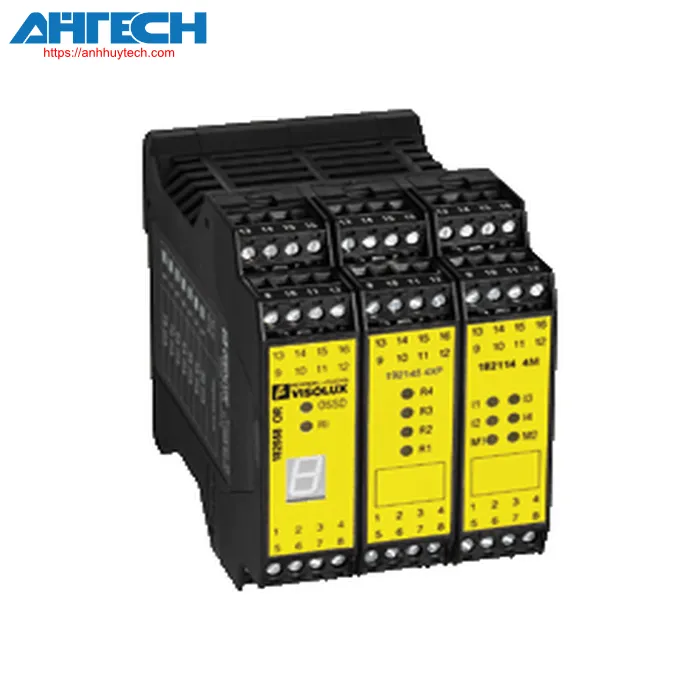

Photoelectric Sensor Pepperl+Fuchs SB4-OR-4XP-4M
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of SB4-OR-4XP-4M
| Item Specification | ||
|---|---|---|
| Safety regulation module | ||
| Overall specifications | ||
|---|---|---|
| Operation mode | Start/restart inhibition, relay monitoring, and muting operation modes | |
| Parameters related to functional safety | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| Performance level (PL) | PL e | |
| Category | Cat. 4 | |
| task duration (TM) | 20 a | |
| PFHd | 3.5 E-9 | |
| B10d | refer to instruction manuals | |
| Type | 4 | |
| Indicators/operation controls | ||
| Diagnostics marker | 7-segment display | |
| operation indicator | LED red: OSSD OFF LED green: OSSD active Yellow LED: start readiness channel 1 - 4 Yellow indicator LED: status indicator (receiver) |
|
| Stability alert indicator | Yellow indicator LED flashing: Indicator light channel 1 ... 4 | |
| Electrical parameters | ||
| Operational voltage | 24 V DC, ± 20 % | |
| No-load input current | 500 mA | |
| Ingress protection rating | no identification; refer to instruction manuals | |
| Input | ||
| Trigger current | approx. 7 mA | |
| Triggering time | 0.4 ... 1.2 s | |
| Verification input | Reset input for system evaluation | |
| Output | ||
| protective output | 2 output relays, force-guided NO-contact | |
| Output signal | 1 PNP each, max. 300 mA for start-up readiness, OSSD activated, OSSD disabled, muting indicator | |
| Switching voltage level | 10 V ... 250 V AC/DC | |
| Switching capacity | min. 10 mA , max. 6 A AC/DC | |
| Conversion power | DC: max. 24 VA AC: max. 230 VA |
|
| reaction time | 38 ms | |
| Compliance | ||
| Safety functionality | ISO 13849-1 ; EN 61508 part1-4 | |
| Product specification | EN 61496-1 | |
| Certifications and approvals | ||
| CE compliance | CE | |
| UKCA compliance | UKCA | |
| UL certification | cULus | |
| TÜV certification | TÜV | |
| Environmental conditions | ||
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) | |
| Ambient storage temperature | -20 ... 70 °C (-4 ... 158 °F) | |
| Comparative moisture content | maximum 95 %, non-condensing | |
| Impact resistance | refer to instruction manuals | |
| vibration durability | refer to instruction manuals | |
| Mechanical characteristics | ||
| Protection等级 | IP20 | |
| Linkage | screw terminals, conductor cross section 0.2 ... 2 mm2 | |
| Material | ||
| Housing | Polyamide (PA) | |
| Mass | 430 g | |
| Measurements | ||
| Height | 99 mm | |
| Width | 45 mm | |
| Depth | 112.7 mm | |
Download Specification for SB4-OR-4XP-4M
