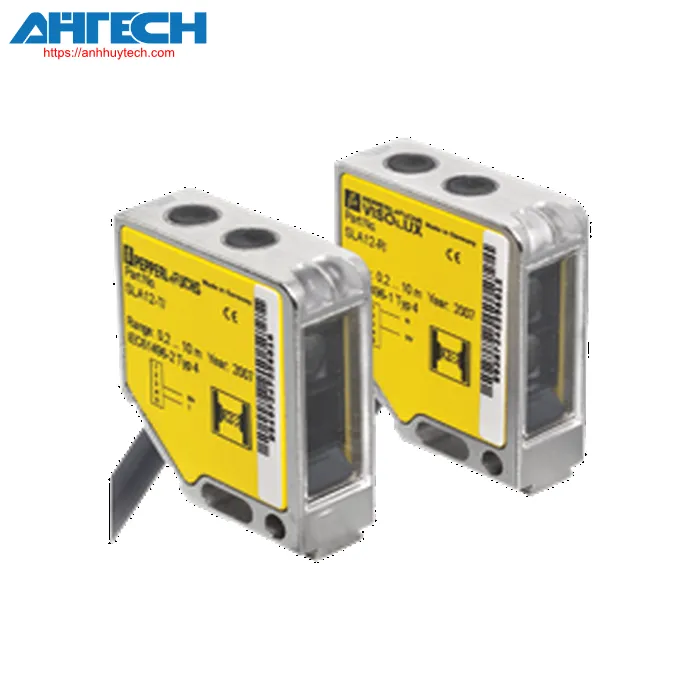

Photoelectric Sensor Pepperl+Fuchs SLA12/115

Pepperl+Fuchs Categories

Photoelectric Sensor Pepperl+Fuchs sla12-115

Photoelectric Sensor SLA12/115

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo  Contact via Zalo Phone call  Phone call
Share on:
Description Download Accessories

Datasheet excerpt: Technical data of  SLA12/115

System elements
EmitterSLA12-T/115
ReceiverSLA12-R/115
Overall specifications
Operational sensing range0.2 ... 10 m
detection range threshold16 m
illumination sourceLED, 660 nm
Illumination typemodulated red light in the visible spectrum
Laser specified ratings
Wavelength
Target dimensionsstatic: 10 mm dynamic: 30 mm (at v = 1.6 m/s of the object)
Alignment toolLED red
angle of opening< 5 °
Parameters related to functional safety
Safety Integrity Level (SIL)SIL 3
Performance level (PL)PL e
CategoryCat. 4
task duration (TM)20 a
PFHd4.4 E-10
Type4
Indicators/operation controls
Operational status indicatorLED green
operation indicatorYellow indicator LED:
1. LED continuously illuminated: signal > 2 x switching threshold (functioning margin)
2. LED blinks: signal between 1 x switching threshold and 2 x switching threshold
3. LED off: signal < threshold point
Electrical parameters
Operational voltagePower supplied through control unit
Ingress protection ratingIII , IEC 61140
Compliance
Safety functionalityISO 13849-1
Product specificationEN 61496-1 ; IEC 61496-2
Certifications and approvals
CE complianceCE
UKCA complianceUKCA
UL certificationcULus Certified
TÜV certificationTÜV SÜD
Environmental conditions
Ambient temperature-20 ... 60 °C (-4 ... 140 °F)
Ambient storage temperature-20 ... 70 °C (-4 ... 158 °F)
Comparative moisture contentmaximum 95 %, non-condensing
Impact resistance10 g, 16 ms; for stationary applications only
vibration durability1 mm, 10 ... 55 Hz; for stationary applications only
Mechanical characteristics
Protection等级IP67 in accordance with EN 60529
Linkage2.5 m, 5-core, rigid cable, Euronorm
Material
HousingFrame: nickel-plated, die-cast zinc,
Lateral components: fiberglass-reinforced plastic PC RAL 1021 (yellow)
optical surfacesynthetic panel
Massfor each unit 60 g
Measurements
Height49 mm
Width15 mm
Depth41.5 mm

Classifications

ConfigurationClassification code
ECLASS 13.027272701
ECLASS 12.027272701
ECLASS 11.027272701
ECLASS 10.0.127272701
ECLASS 9.027272701
ECLASS 8.027272701
ECLASS 5.127272701
ETIM 9.0EC002716
ETIM 8.0EC002716
ETIM 7.0EC002716
ETIM 6.0EC002716
ETIM 5.0EC002716
UNSPSC 12.146171620

Download Specification for SLA12/115

Download PDF

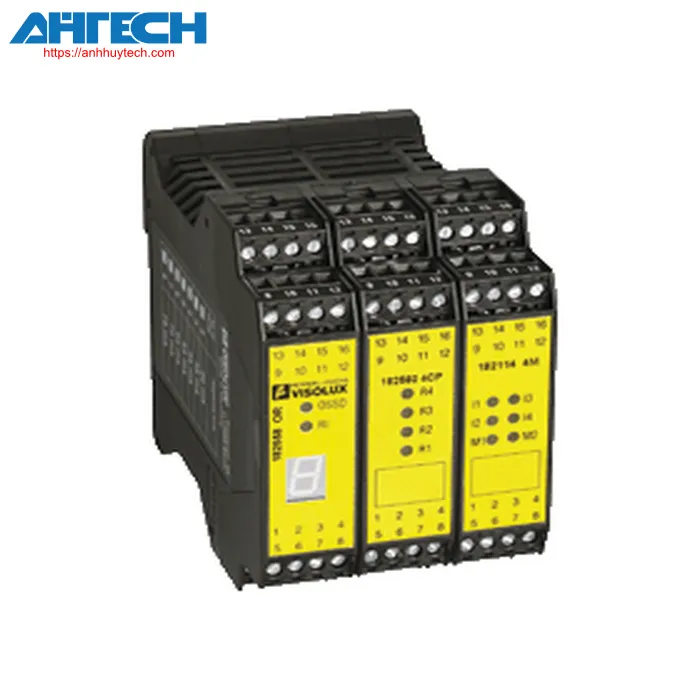

Photoelectric Sensor Pepperl+Fuchs sb4-or-4cp-4m
Photoelectric Sensor SB4-OR-4CP-4M

  • Brand: Pepperl+Fuchs
  • Product Code:

Photoelectric Sensor Pepperl+Fuchs sb4-or-4cp-4c
Photoelectric Sensor SB4-OR-4CP-4C

  • Brand: Pepperl+Fuchs
  • Product Code:

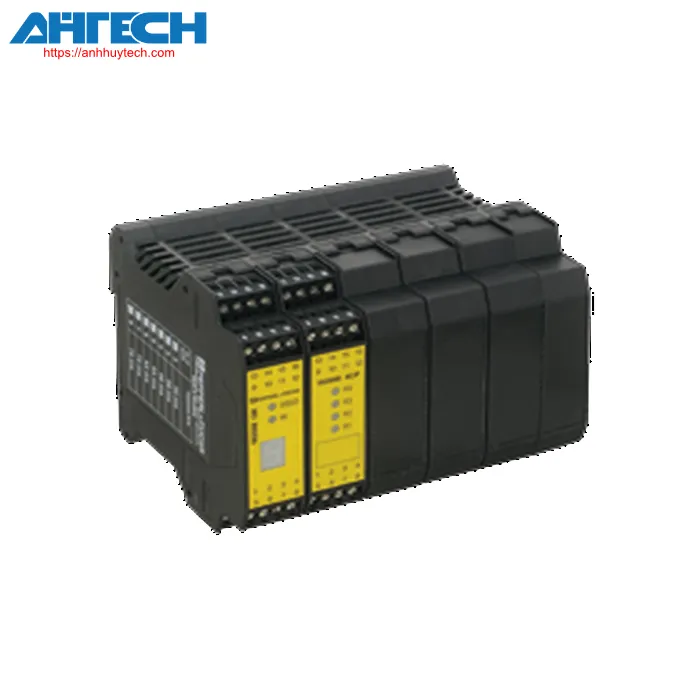

Photoelectric Sensor Pepperl+Fuchs sb4-or-4cp-b-b-b-b
Photoelectric Sensor SB4-OR-4CP-B-B-B-B

  • Brand: Pepperl+Fuchs
  • Product Code:

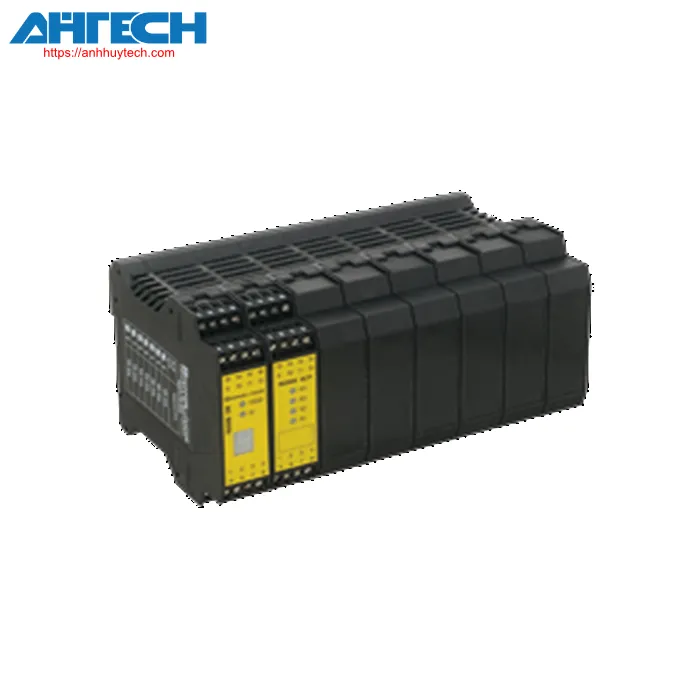

Photoelectric Sensor Pepperl+Fuchs sb4-or-4cp-b-b-b-b-b-b
Photoelectric Sensor SB4-OR-4CP-B-B-B-B-B-B

  • Brand: Pepperl+Fuchs
  • Product Code:

RELATED PRODUCTS

Photoelectric Sensor Pepperl+Fuchs bb10-p-25-33-76b-103-115-10m
Photoelectric Sensor BB10-P/25/33/76b/103/115-10m

  • Brand: PEPPERL+FUCHS
  • Category:
    Photoelectric Sensor
  • Product Code:

Photoelectric Sensor Pepperl+Fuchs bb10-p-f1-35-59-103-115-25m
Photoelectric Sensor BB10-P-F1/35/59/103/115-2,5m

  • Brand: PEPPERL+FUCHS
  • Category:
    Photoelectric Sensor
  • Product Code:

Photoelectric Sensor Pepperl+Fuchs mpp6hd
Photoelectric Sensor MPP6HD

  • Brand: PEPPERL+FUCHS
  • Category:
    Photoelectric Sensor
  • Product Code:

Photoelectric Sensor Pepperl+Fuchs ml300-p-6m-rt-25-98-102
Photoelectric Sensor ML300-P-6m-RT/25/98/102

  • Brand: PEPPERL+FUCHS
  • Category:
    Photoelectric Sensor
  • Product Code:

Photoelectric Sensor Pepperl+Fuchs obe10m-r2-se0-p-l
Photoelectric Sensor OBE10M-R2-SE0-P-L

  • Brand: PEPPERL+FUCHS
  • Category:
    Photoelectric Sensor
  • Product Code:

Photoelectric Sensor Pepperl+Fuchs 100mm
Photoelectric Sensor 100mm

  • Brand: PEPPERL+FUCHS
  • Category:
    Photoelectric Sensor
  • Product Code:

Photoelectric Sensor Pepperl+Fuchs gd18-gv18-59-102-159
Photoelectric Sensor GD18/GV18/59/102/159

  • Brand: PEPPERL+FUCHS
  • Category:
    Photoelectric Sensor
  • Product Code:

Photoelectric Sensor Pepperl+Fuchs obe25m-18gk40-se2
Photoelectric Sensor OBE25M-18GK40-SE2

  • Brand: PEPPERL+FUCHS
  • Category:
    Photoelectric Sensor
  • Product Code:

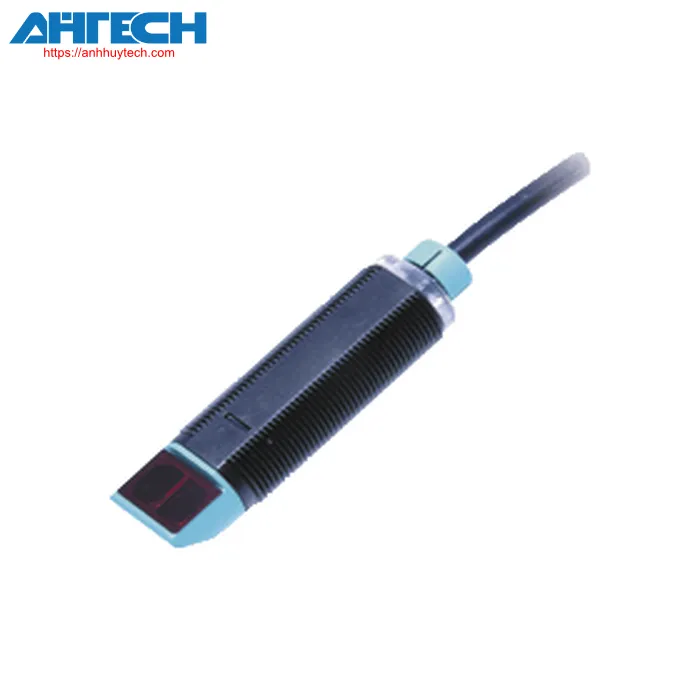

Photoelectric Sensor Pepperl+Fuchs glk18-55-s-25-115-161
Photoelectric Sensor GLK18-55-S/25/115/161

  • Brand: PEPPERL+FUCHS
  • Category:
    Photoelectric Sensor
  • Product Code:

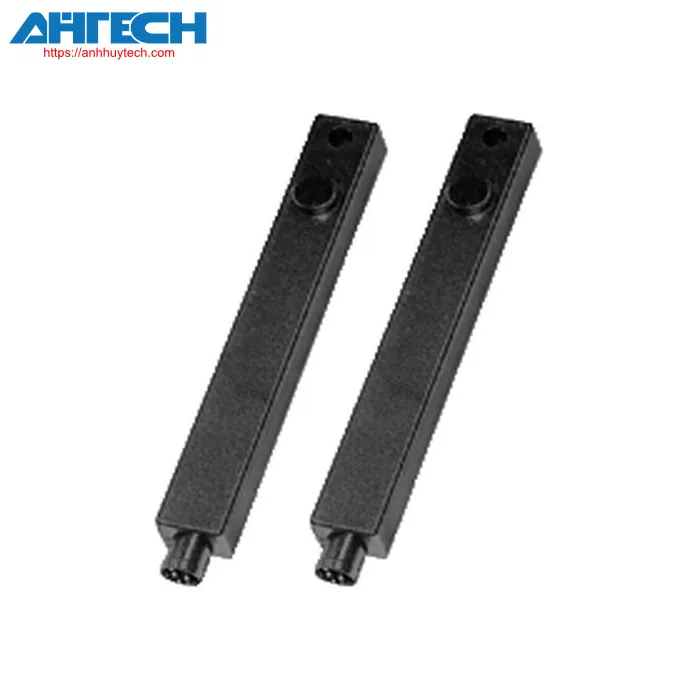

Photoelectric Sensor Pepperl+Fuchs ml29-p-59-103-143
