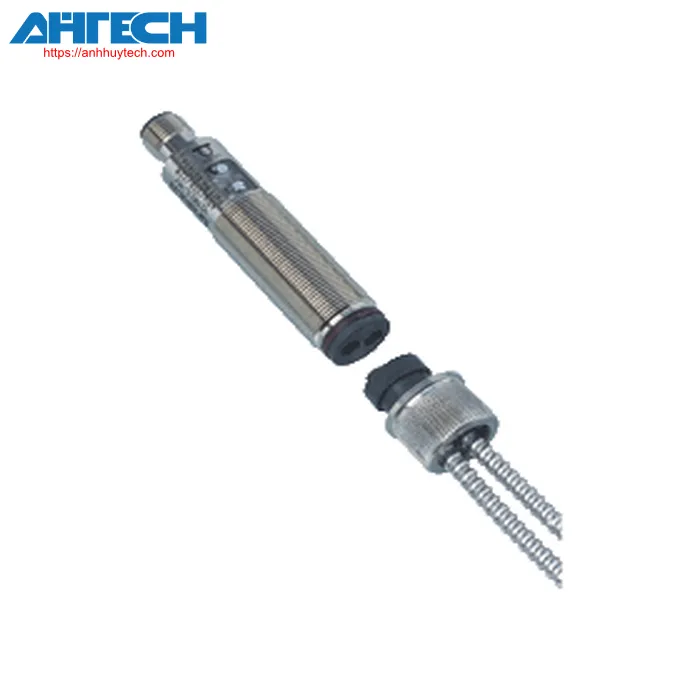

Photoelectric Sensor Pepperl+Fuchs VL18LL-M/40a/118/128
Pepperl+Fuchs Categories
Photoelectric Sensor VL18LL-M/40a/118/128
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of VL18LL-M/40a/118/128
| Item Specification | ||
|---|---|---|
| Fiber optic sensor designed for glass fiber applications | ||
| Overall specifications | ||
|---|---|---|
| detection range | up to 70 mm (LMR 18-3,2-1,0-K4) |
|
| Detection distance | up to 300 mm (LME 18-2,3-0,5-K3) |
|
| illumination source | LED, 650 nm red light in the visible spectrum | |
| Illumination type | modulated red light in the visible spectrum | |
| angle of opening | 26 ° | |
| optical surface | frontal | |
| Ambient light threshold | 30000 Lux | |
| Deadband | < 15 % | |
| Parameters related to functional safety | ||
| MTTFd | 700 a | |
| task duration (TM) | 20 a | |
| Diagnostic Range (DC) | 0 % | |
| Indicators/operation controls | ||
| Operational status indicator | Green LED, blinks in the event of a short circuit | |
| operation indicator | Yellow indicator LED illuminates when the receiver is activated | |
| control components | Sensitivity adjustment, light/dark toggle | |
| Electrical parameters | ||
| Operational voltage | 10 ... 30 V DC , class 2 | |
| Ripple | 10 % | |
| No-load input current | < 35 mA | |
| Ingress protection rating | II , rated voltage = 50 V AC with pollution degree 1-2 per IEC 60664-1 | |
| Output | ||
| Type of switch | switchable light/dark on | |
| Output signal | Push-pull (4 in 1) output short-circuit protected overvoltage protected | |
| Switching voltage level | 30 V DC | |
| Switching capacity | max. 200 mA | |
| voltage loss | = 2.5 V DC | |
| commutation frequency | 500 Hz | |
| reaction time | 1 ms | |
| Compliance | ||
| Product specification | EN 60947-5-2 | |
| Certifications and approvals | ||
| EAC compliance | TR CU 020/2011 | |
| UL certification | cULus Certified, Type 1 housing | |
| CCC certification | CCC certification / marking not necessary for products rated ≤36 V | |
| Environmental conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Ambient storage temperature | -30 ... 70 °C (-22 ... 158 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP67 | |
| Linkage | M12 connector, 4-pole | |
| Material | ||
| Housing | brass with a nickel coating | |
| optical surface | plastic | |
| Mass | 60 g | |
| Measurements | ||
| Length | 65 mm | |
| Diameter | 18 mm | |
Download Specification for VL18LL-M/40a/118/128
Download PDF
