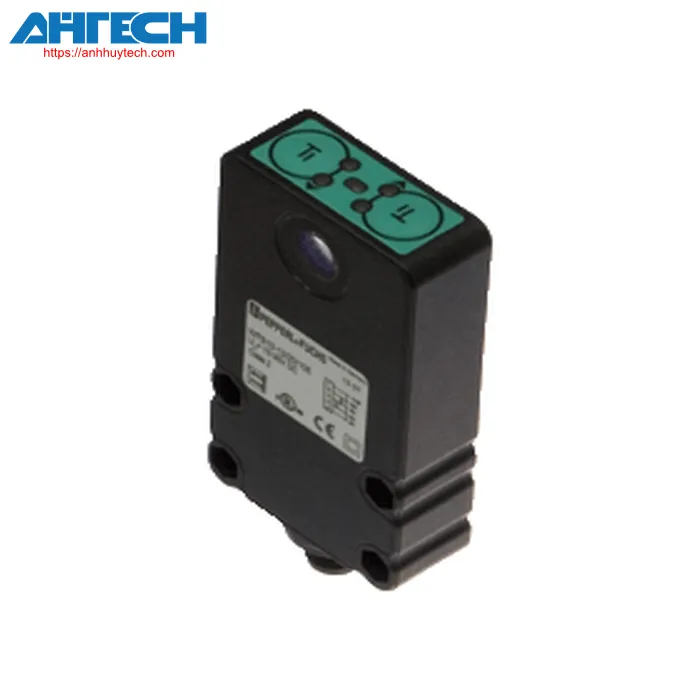

Photoelectric Sensor WTS10-12-4016/103/105

Brand: Pepperl+Fuchs
Product Code:

Contact via Zalo

Phone call

Share on:

Description Download Accessories

Datasheet excerpt: Technical data of WTS10-12-4016/103/105

Classifications

Item Specification
Diffuse reflection sensor

Overall specifications
Detection distance		2 ... 12 mm
Reference point		Copper welding-electrode Diameter: 16 mm , Front end: 6 mm
illumination source		LED
Illumination type		modulated red light in the visible spectrum , 640 nm
Ambient light threshold		continuous light 40000 Lux , Modulated illumination 5000 Lux
pivot angle		± 1.5 °
positional tolerance		± 2 mm
Indicators/operation controls
Operational status indicator		LED green: Power activated
operation indicator		Yellow indicator LED: status of switching Red LED: Stability alarm alert
learning confirmation indicator		LED, green/yellow blinking (approximately 4 Hz) Teach Error: LED green/yellow alternating flashing; 8.0 Hz
control components		learning key
Electrical parameters
Operational voltage		10 ... 30 V DC
No-load input current		= 70 mA
Input
Input function		Enable keys (EK)
Output
Type of switch		light-on
Output signal		PNP switching output with normally open contact and logical coupling of both sensor channels, featuring short-circuit protection and reverse polarity protection
Switching capacity		max. 100 mA
commutation frequency		100 Hz
reaction time		5 ms
Compliance
Product specification		EN 60947-5-2
Adherence to standards and directives
Compliance with standards
	Resistance to shock and impact	IEC / EN 60068. half-sine, 50 g in each X, Y, and Z axes
	vibration durability	IEC / EN 60068-2-6. Sinusoidal. 10 - 150 Hz, 5 g in each of the X, Y, and Z axes
Certifications and approvals
Ingress protection rating		II, rated voltage = 250 V AC with pollution degree 1-2 according to IEC 60664-1
UL certification		cULus Certified
CCC certification		CCC certification / marking not necessary for products rated ≤36 V
Environmental conditions
Ambient temperature		0 ... 50 °C (32 ... 122 °F) The switching accuracy will be maintained if the temperature after Teach-In does not change by more than ±7 °C
Ambient storage temperature		-20 ... 70 °C (-4 ... 158 °F)
Mechanical characteristics
Protection等级		IP67
Linkage		5-pin, M12 x 1 connector
Material
	Housing	PC + ABS
	optical surface	Mineral glass lens with scratch resistance
Mass		80 g
