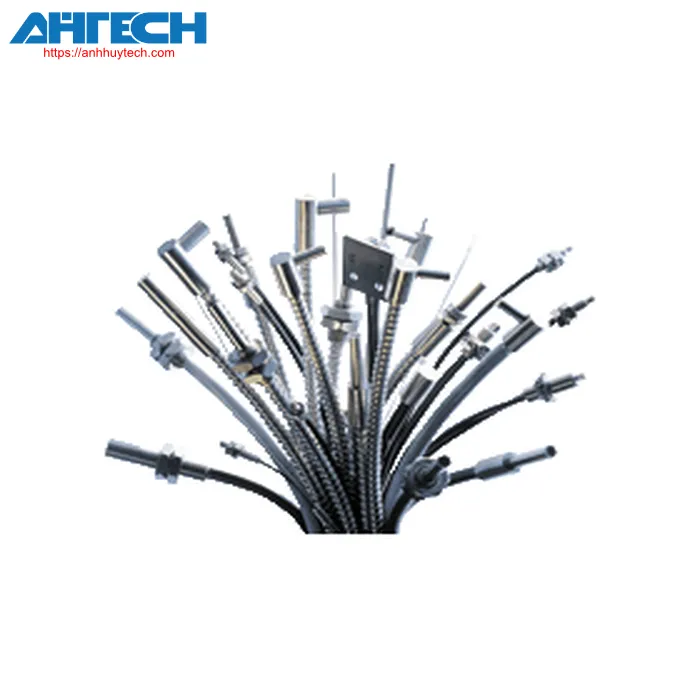

Sensor Accessory Pepperl+Fuchs 00-0,8-1,0-14M3
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of LHR 00-0,8-1,0-14M3
| Item Specification | ||
|---|---|---|
| Fiber optic glass - diffuse with silicone coating | ||
| Overall specifications | ||
|---|---|---|
| detection range | SU18: 40 mm SU18/35: 195 mm SU19: 40 mm |
|
| length of fiber optic cable | 1000 mm | |
| Diameter of fiber optic | 3 mm | |
| Adapter configuration | 00 | |
| End cap | thread | |
| Curvature radius | 5 mm static | |
| fiber bundle width | 0.8 mm | |
| Fiber setup | optically isolated | |
| angle of opening | 68 ° | |
| Environmental conditions | ||
| Ambient temperature | -20 ... 85 °C (-4 ... 185 °F) -40 ... 180 °C (-40 ... 356 °F) |
|
| Mechanical characteristics | ||
| Material | ||
| optical surface | glass | |
| Insulation | silicone | |
| Core | Glass filament | |
| End cap | Stainless steel 1.4305 / AISI 303 | |
| Adapter | Stainless steel | |
| Pulling force | 50 N | |
| Fiber optic signal boosters | ||
| Product range | SU18 ; SU18/35 ; SU19 | |
Download Specification for 00-0,8-1,0-14M3
