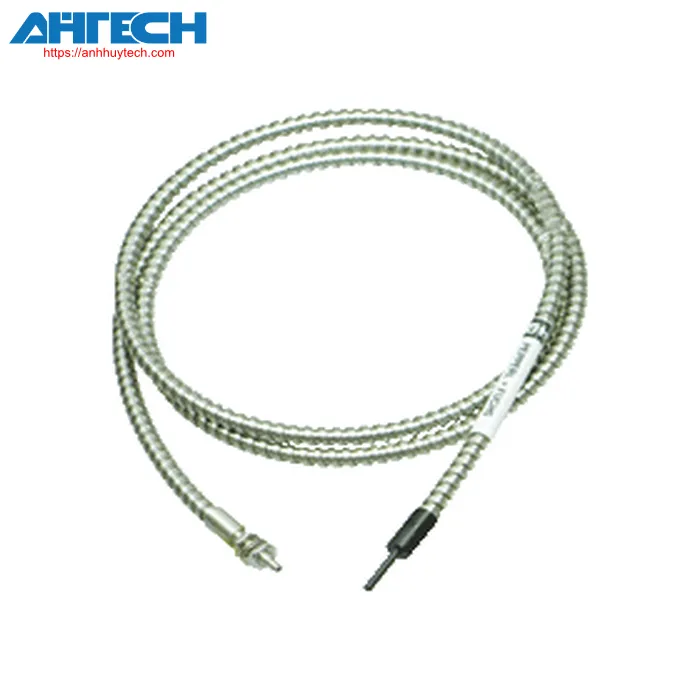

Sensor Accessory Pepperl+Fuchs 00-1,0-1,0-K151
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of LME 00-1,0-1,0-K151
| Item Specification | ||
|---|---|---|
| Fiber optic glass - thru-beam | ||
| Overall specifications | ||
|---|---|---|
| Detection distance | SU18: 144 mm SU18/35: 892 mm SU19: 144 mm |
|
| length of fiber optic cable | 1016 mm | |
| Diameter of fiber optic | 1 mm | |
| Adapter configuration | 00 | |
| End cap | thread | |
| Curvature radius | min. 30 mm | |
| angle of opening | approx. 68 ° | |
| Environmental conditions | ||
| Ambient temperature | -55 ... 200 °C (-67 ... 392 °F) [Housing] -55 ... 250 °C (-67 ... 482 °F) [End head] |
|
| Mechanical characteristics | ||
| Material | ||
| optical surface | glass | |
| Insulation | stainless steel 1.4301 / AISI 304 | |
| Core | glass | |
| End cap | stainless steel 1.4301 / AISI 304 | |
| Adapter | plastic | |
| Overview information | ||
| Contents of shipment | Fiber optic cables individually packaged | |
| Fiber optic signal boosters | ||
| Product range | SU18 ; SU18/35 ; SU19 | |
