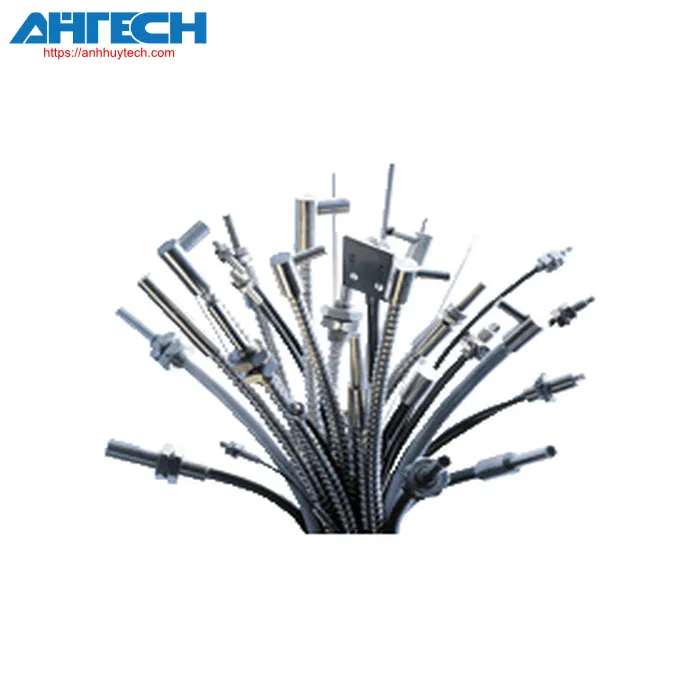

Sensor Accessory Pepperl+Fuchs 01-2,5-0,15-Z1
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of LHR 01-2,5-0,15-Z1
| Item Specification | ||
|---|---|---|
| Fiber optic glass - diffuse with silicone coating | ||
| Overall specifications | ||
|---|---|---|
| length of fiber optic cable | 150 mm | |
| Diameter of fiber optic | 4.4 mm | |
| Adapter configuration | 01 | |
| End cap | Round | |
| Curvature radius | min. 5 mm static | |
| fiber bundle width | 2.5 mm optical surface: 4.9 mm2 | |
| angle of opening | approx. 68 ° | |
| Certifications and approvals | ||
| Certifications | CE | |
| Environmental conditions | ||
| Ambient temperature | -20 ... 85 °C (-4 ... 185 °F) -20 ... 85 °C (-4 ... 185 °F) |
|
| Ambient storage temperature | -20 ... 85 °C (-4 ... 185 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP65 | |
| Material | ||
| optical surface | glass | |
| Insulation | silicone | |
| Core | Glass filament | |
| End cap | Stainless steel 1.4305 / AISI 303 | |
| Adapter | Stainless steel 1.4305 / AISI 303 | |
| Pulling force | at sensor at 20°C: 7.5 N | |
| Fiber optic signal boosters | ||
| Product range | KSU-LL | |
Download Specification for 01-2,5-0,15-Z1
Download PDFRELATED PRODUCTS
