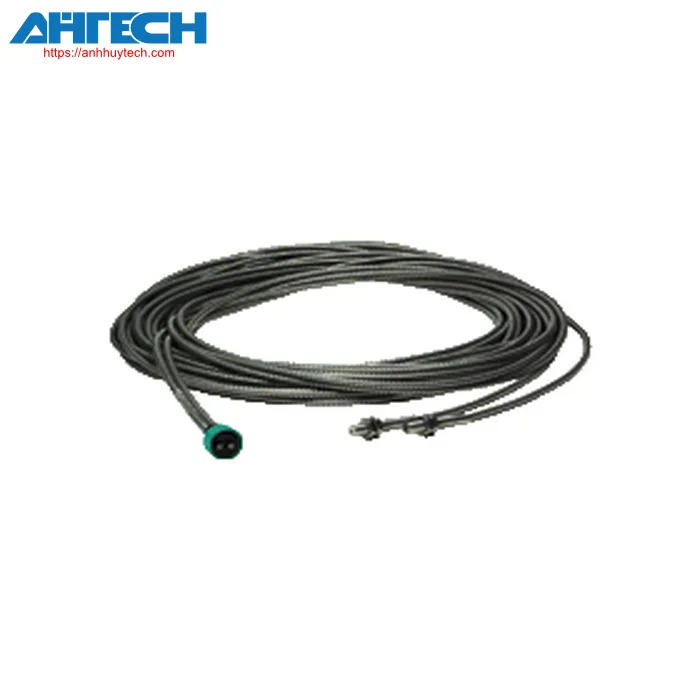

Sensor Accessory Pepperl+Fuchs 18-2,3-10,0-K5
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of LME 18-2,3-10,0-K5
| Item Specification | ||
|---|---|---|
| Fiber optic glass - thru-beam with metallic sheath | ||
| Overall specifications | ||
|---|---|---|
| length of fiber optic cable | 10 m | |
| Diameter of fiber optic | 5 mm | |
| Adapter configuration | 18 | |
| End cap | thread | |
| Curvature radius | min. 20 mm | |
| fiber bundle width | 2.3 mm | |
| Certifications and approvals | ||
| Certifications | CE | |
| Environmental conditions | ||
| Ambient temperature | -20 ... 85 °C (-4 ... 185 °F) -40 ... 260 °C (-40 ... 500 °F) |
|
| Ambient storage temperature | -20 ... 85 °C (-4 ... 185 °F) | |
| Mechanical characteristics | ||
| Protection等级 | IP40 | |
| Material | ||
| optical surface | glass | |
| Insulation | metal | |
| Core | Glass filament | |
| End cap | Stainless steel 1.4305 / AISI 303 | |
| Adapter | PBT | |
| Pulling force | 120 N | |
| Fiber optic signal boosters | ||
| Product range | VL18LL VariKont M |
|
