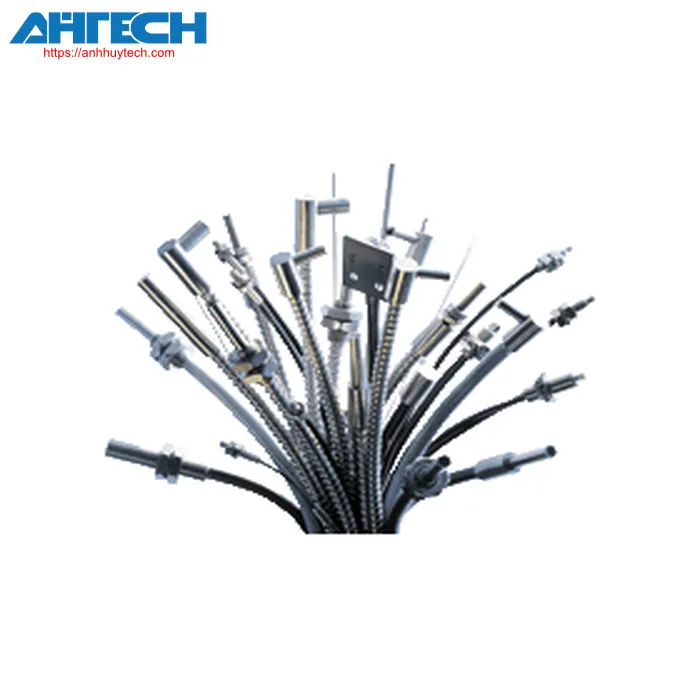

Sensor Accessory Pepperl+Fuchs HPF-T001
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of HPF-T001
| Item Specification | ||
|---|---|---|
| Plastic optical fiber - through-beam | ||
| Overall specifications | ||
|---|---|---|
| Detection distance | SU18/35: 2470 mm SU18: 370 mm SU19: 370 mm SU17.1: 2100 mm ML17-LL: 363 mm MHP-FR: 170 mm |
|
| length of fiber optic cable | 2000 mm, customizable | |
| Diameter of fiber optic | 2.2 mm | |
| Adapter configuration | 00 | |
| End cap | thread | |
| Curvature radius | min. 25 mm | |
| Fiber setup | refer to measurements | |
| Environmental conditions | ||
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) |
|
| Mechanical characteristics | ||
| Material | ||
| optical surface | plastic | |
| Insulation | Black polyethylene material | |
| Core | plastic | |
| Overview information | ||
| Contents of shipment | Fiber optic cables bundled in pairs | |
| Fiber optic signal boosters | ||
| Product range | SU18/35 ; SU18 ; SU19 ; SU17.1; ML17-LL; MHP-FR | |
Download Specification for HPF-T001
