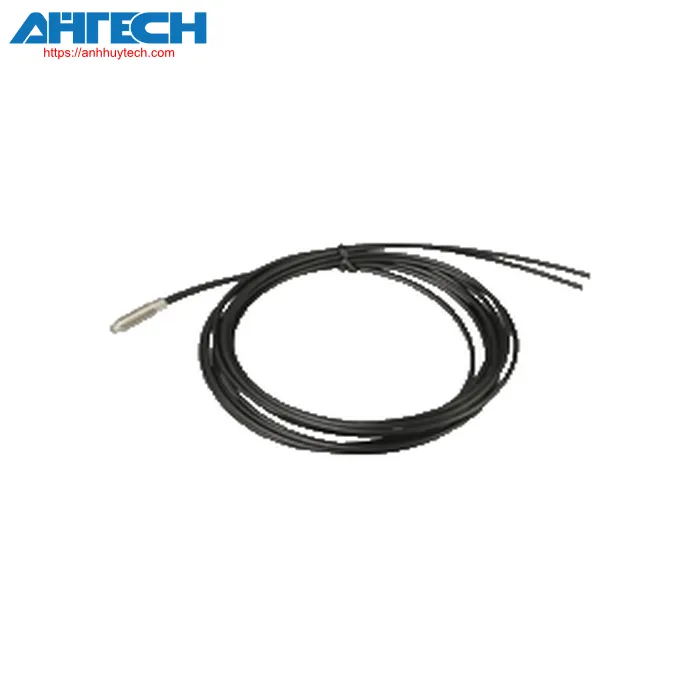

Sensor Accessory Pepperl+Fuchs KHTR-C02-2,2-2,0-K88
Pepperl+Fuchs Categories
Sensor Accessory KHTR-C02-2,2-2,0-K88
Brand: Pepperl+Fuchs
Product Code:
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of KHTR-C02-2,2-2,0-K88
| Item Specification | ||
|---|---|---|
| Plastic optical fiber - diffuse | ||
| Overall specifications | ||
|---|---|---|
| detection range | SU18: 80 mm SU18/35: 280 mm SU19: 80 mm |
|
| length of fiber optic cable | 2000 mm, customizable | |
| Diameter of fiber optic | 2.2 mm | |
| Adapter configuration | 00 | |
| End cap | thread | |
| Curvature radius | min. 25 mm | |
| Fiber setup | refer to measurements | |
| angle of opening | 67 ° | |
| Included accessories | Cutting tool for plastic optical fibers | |
| Environmental conditions | ||
| Ambient temperature | -55 ... 115 °C (-67 ... 239 °F) | |
| Mechanical characteristics | ||
| Material | ||
| optical surface | plastic | |
| Insulation | PVC | |
| Core | plastic | |
| End cap | Stainless steel 1.4305 / AISI 303 | |
| Fiber optic signal boosters | ||
| Product range | SU18 ; SU18/35 ; SU19 | |
Download Specification for KHTR-C02-2,2-2,0-K88
Download PDF
