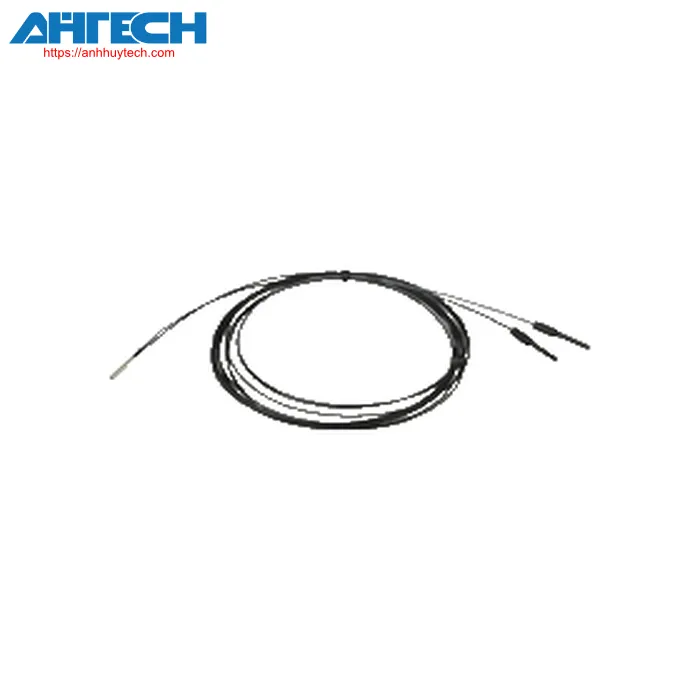

Sensor Accessory Pepperl+Fuchs KLR-C02-1,0-2,0-K87
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of KLR-C02-1,0-2,0-K87
| Item Specification | ||
|---|---|---|
| Plastic optical fiber - diffuse | ||
| Overall specifications | ||
|---|---|---|
| detection range | SU18: 25 mm SU18/35: 85 mm SU19: 25 mm |
|
| length of fiber optic cable | 2000 mm, customizable | |
| Diameter of fiber optic | 1 mm | |
| Adapter configuration | 00 | |
| End cap | Round | |
| Curvature radius | min. 15 mm | |
| Fiber setup | refer to measurements | |
| angle of opening | 67 ° | |
| Included accessories | Cutting tool for plastic optical fibers | |
| Environmental conditions | ||
| Ambient temperature | -55 ... 70 °C (-67 ... 158 °F) | |
| Mechanical characteristics | ||
| Material | ||
| optical surface | plastic | |
| Insulation | PVC | |
| Core | plastic | |
| End cap | Stainless steel 1.4305 / AISI 303 | |
| Fiber optic signal boosters | ||
| Product range | SU18 ; SU18/35 ; SU19 | |
Download Specification for KLR-C02-1,0-2,0-K87
Download PDFRELATED PRODUCTS
