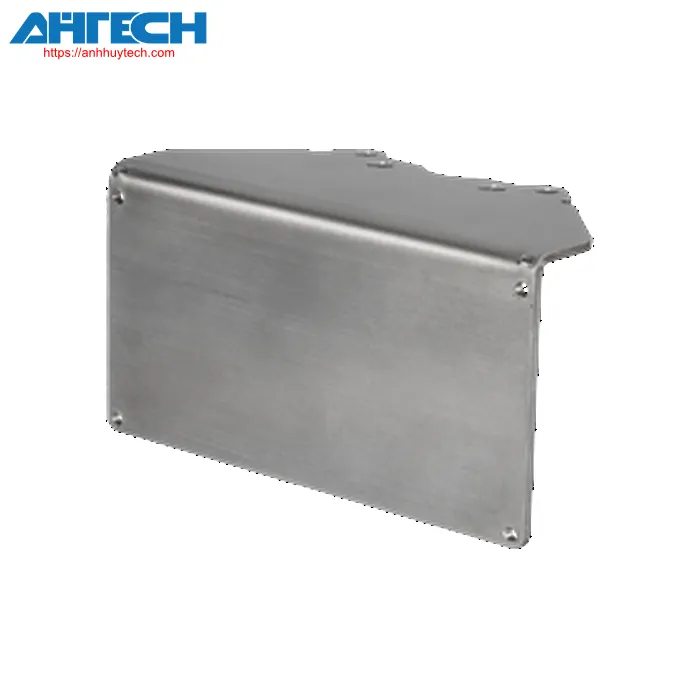

Sensor Accessory Pepperl+Fuchs MHV-WS-F406-F05-M5
Pepperl+Fuchs Categories
Contact via Zalo
Phone call
Datasheet excerpt: Technical data of MHV-WS-F406-F05-M5
| Item Specification | ||
|---|---|---|
| mounting angle for WILSEN.valve devices for attachement to adatpter plate and mounting sets of the MHV-BT* series for manually operated valves | ||
| Overall specifications | ||
|---|---|---|
| Suitable components | WILSEN.valve Connector device plate for dual sensors -F25/-F31 series Connector device plate for dual sensors F31K/-F31K2 series |
|
| Compliance with standards | ||
| Standards | DIN EN ISO 5211 / DIN 3337 | |
| Mechanical characteristics | ||
| Material | stainless steel 1.4301 / AISI 304 | |
| Mass | 295 g | |
| Measurements | ||
| Height | 75.5 mm | |
| Width | 134 mm | |
| Length | 57 mm | |
| Overview information | ||
| Note | For the mounting bracket, we offer other suitable accessories such as adapter plates and mounting sets for manual operated valves. | |
| Contents of shipment | For mounting of the mounting bracket to the adapter plate: 2 allen head screws M5 x 8 (for mounting from behind) 2 allen head screws M6 x 10 (for lateral mounting) |
|
