Encoder Turck REI-12H15E-4B1000-H1181
TURCK CATEGORIES

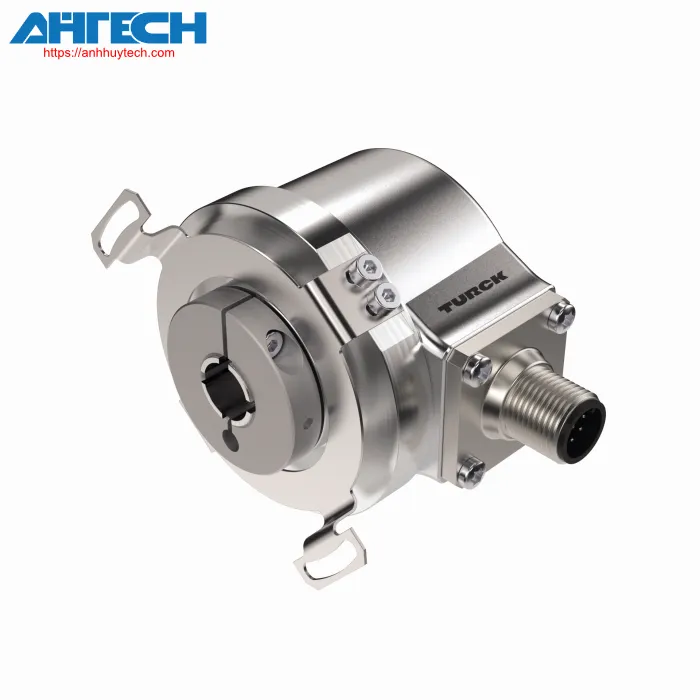

Encoder REI-12H15E-4B1000-H1181
Brand: Turck
Product Code: 100010530
Country of origin: DE
- Flange with stator connection, Ø 63 mm
- Hollow shaft, Ø 15 mm
- Optical measurement method
- Shaft composition: stainless steel
- Safety rating IP67 on both housing and shaft sides
- -40…+85 °C
- Max. 6000 rpm (rated for continuous operation at 3000 rpm)
- 5…30 VDC
- RS422/TTL reversible
- Pulse rate max. 300 kHz
- M12 × 1 plug connector, 8-pole
- 1000 pulses per revolution
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 400 g |
Technical Data
| Encoder line | Industrial Series |
| Technology | Optical |
| Output category | Differential |
| Shaft Type | Closed-end shaft |
| Shaft diameter d (mm) | 15 |
| Flange width | Ø 63 mm |
| Flange classification | Flange with stator connection |
| Differential resolution | 1000 ppr |
| Supply voltage | 5…30 VDC |
| Output category | RS422/TTL, reversible |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -40…+85 °C |
| Enclosure protection class | IP65 |
| Safety rating shaft | IP67 |
| Safety rating | IP67 |
Download Specification for REI-12H15E-4B1000-H1181
Download PDF
