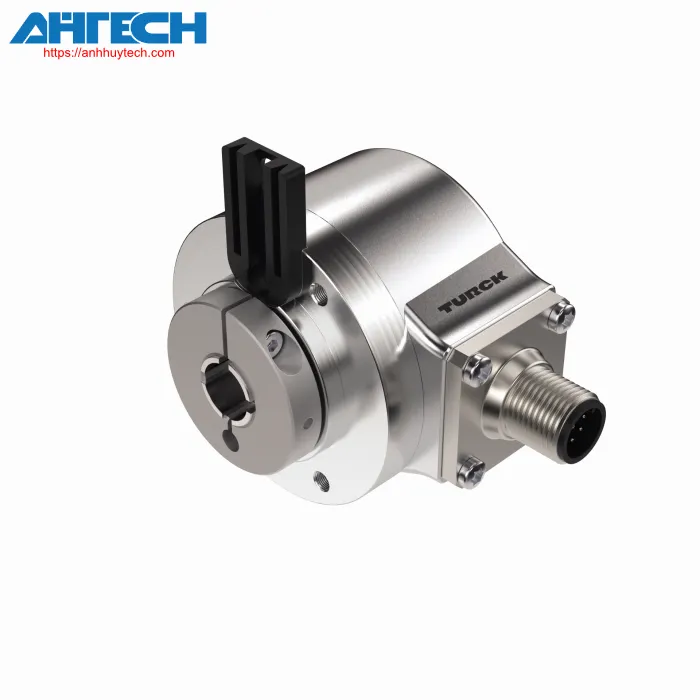

Encoder Turck REI-12HA1T-2B1024-H1181
TURCK CATEGORIES
Encoder REI-12HA1T-2B1024-H1181
Brand: Turck
Product Code: 100010405
Country of origin: DE
- Flange with torque limit, Ø 50.8 mm
- Hollow shaft, Ø 3/8"
- Optical measurement method
- Shaft composition: stainless steel
- Safety rating IP67 on both housing and shaft sides
- -40…+85 °C
- Max. 6000 rpm (rated for continuous operation at 3000 rpm)
- 10…30 VDC
- Push-pull/HTL reversible
- Pulse rate max. 300 kHz
- M12 × 1 plug connector, 8-pole
- 1024 pulses per revolution
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 400 g |
Technical Data
| Encoder line | Industrial Series |
| Technology | Optical |
| Output category | Differential |
| Shaft Type | Closed-end shaft |
| Shaft diameter d (mm) | 9.525 |
| Shaft diameter d | 0.375 in |
| Flange width | Ø 50.8 mm |
| Flange classification | Flange featuring a mounting component |
| Differential resolution | 1024 ppr |
| Supply voltage | 10…30 VDC |
| Output category | Push-Pull/HTL, reversible |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -40…+85 °C |
| Safety rating shaft | IP67 |
| Safety rating | IP67 |
Download Specification for REI-12HA1T-2B1024-H1181
