Encoder Turck REI-E-111T6C-2B500-C
TURCK CATEGORIES
Encoder REI-E-111T6C-2B500-C
Brand: Turck
Product Code: 100011943
Country of origin: IN

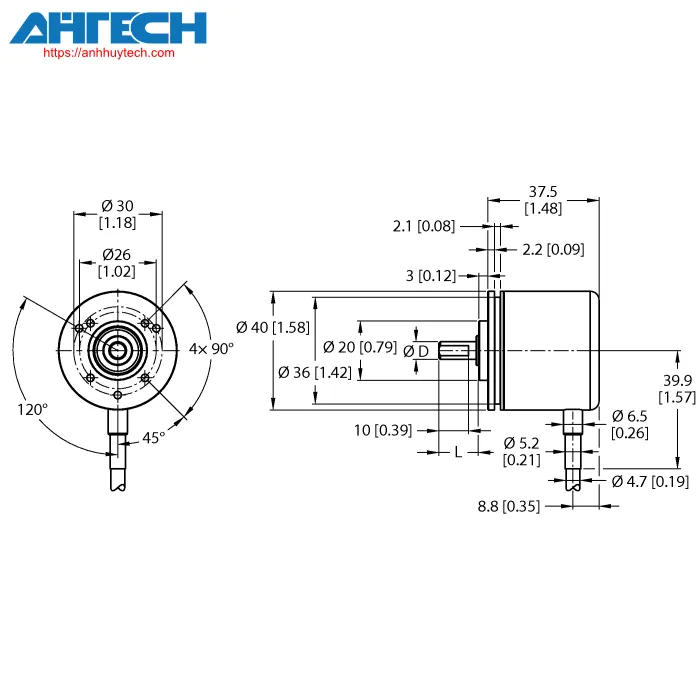

- Synchronization/clamping flange, Ø 40 mm
- Rigid shaft, Ø 6 mm × 12.5 mm
- Optical measurement method
- Shaft composition: stainless steel
- IP64 protection rating on the housing and shaft side
- -20…+70 °C
- Max. 4500 rpm
- 10…30 VDC
- Push-pull/HTL reversible
- Pulse rate max. 300 kHz
- Cable interface
- 500 counts per revolution
Contact via Zalo
Phone call
General data
| eCl@ss-Code (V5.1.4): | 27270502 -/- Encoder, incremental |
| Tariff classification number | 90318080000 |
| Place of manufacture | IN |
| Weight | 244 g |
Technical Data
| Encoder line | Efficiency-Line |
| Technology | Optical |
| Output category | Differential |
| Shaft Type | Rigid shaft |
| Shaft diameter d (mm) | 6 |
| Flange width | Ø 40 mm |
| Flange classification | Synchronization/clamping flange |
| Differential resolution | 500 ppr |
| Supply voltage | 10…30 VDC |
| Output category | Push-Pull/HTL, reversible |
| Type of connection | Cable |
| Enclosure material | Aluminium |
| Surrounding temperature | -20…+70 °C |
| Safety rating shaft | IP64 |
| Safety rating | IP64 |
Download Specification for REI-E-111T6C-2B500-C
Download PDF
