Encoder Turck REI-E-112I8E-2B2500-C
TURCK CATEGORIES
Encoder REI-E-112I8E-2B2500-C
Brand: Turck
Product Code: 100012064
Country of origin: IN

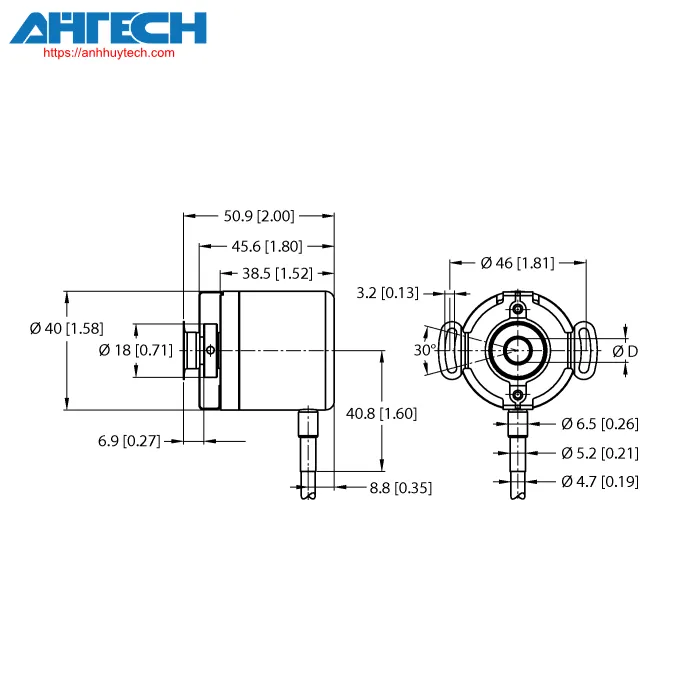

- Flange with stator connection, Ø 46 mm
- Blind hole tubular shaft, Ø 8 mm (maximum plug-in depth 18 mm)
- Optical measurement method
- Shaft composition: stainless steel
- IP64 protection rating on the housing and shaft side
- -20…+70 °C
- Max. 4500 rpm
- 10…30 VDC
- Push-pull/HTL reversible
- Pulse rate max. 300 kHz
- Cable interface
- 2500 pulses for each revolution
Contact via Zalo
Phone call
General data
| Place of manufacture | IN |
| Weight | 254 g |
Technical Data
| Encoder line | Efficiency-Line |
| Technology | Optical |
| Output category | Differential |
| Shaft Type | Closed-end shaft |
| Shaft diameter d (mm) | 8 |
| Flange width | Ø 46 mm |
| Flange classification | Flange with stator connection |
| Differential resolution | 2500 ppr |
| Supply voltage | 10…30 VDC |
| Output category | Push-Pull/HTL, reversible |
| Type of connection | Cable |
| Enclosure material | Aluminium |
| Surrounding temperature | -20…+70 °C |
| Safety rating shaft | IP64 |
| Safety rating | IP64 |
Download Specification for REI-E-112I8E-2B2500-C
