Encoder Turck REI-E-113T12C-4B360-H1181
TURCK CATEGORIES

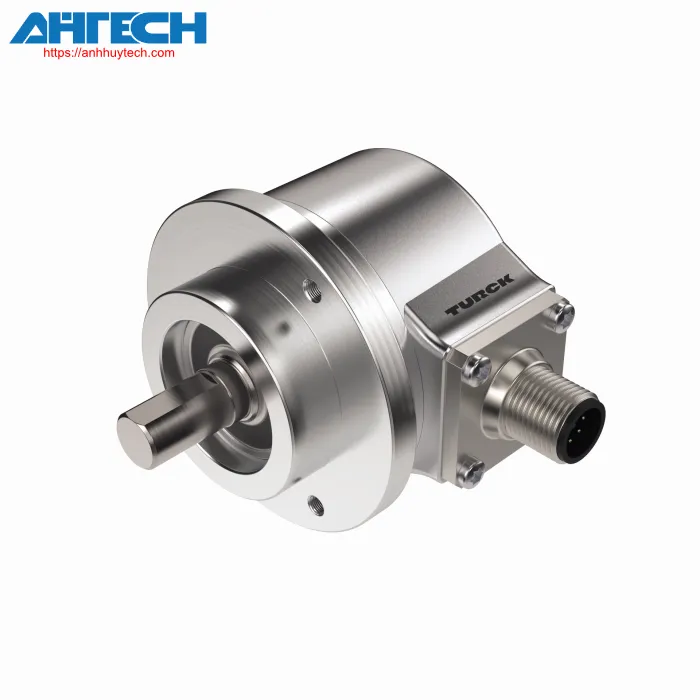

Encoder REI-E-113T12C-4B360-H1181
Brand: Turck
Product Code: 100011645
Country of origin: IN
- Mounting flange, diameter Ø 58 mm
- Rigid shaft, Ø 12 mm × 20 mm
- Optical measurement method
- Shaft composition: stainless steel
- IP64 protection rating on the housing and shaft side
- -20…+70 °C
- Max. 4500 rpm (continuous operation 3000)
- 5…30 VDC
- RS422/TTL reversible
- Pulse rate max. 300 kHz
- M12 × 1 plug connector, 8-pole
- 360 impulses per rotation
Contact via Zalo
Phone call
General data
| Place of manufacture | IN |
| Weight | 382 g |
Technical Data
| Encoder line | Efficiency-Line |
| Technology | Optical |
| Output category | Differential |
| Shaft Type | Rigid shaft |
| Shaft diameter d (mm) | 12 |
| Flange width | Ø 58 mm |
| Flange classification | Mounting flange |
| Differential resolution | 360 ppr |
| Supply voltage | 5…30 VDC |
| Output category | RS422/TTL, reversible |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -20…+70 °C |
| Safety rating shaft | IP64 |
| Safety rating | IP64 |
Download Specification for REI-E-113T12C-4B360-H1181
Download PDF
