Encoder Turck REM-100B6T-3C13S12M-H1181
TURCK CATEGORIES
Encoder REM-100B6T-3C13S12M-H1181
Brand: Turck
Product Code: 100011267
Country of origin: DE
- Flange featuring a mounting component
- Blind hole tubular shaft, Ø 6 mm (insertion depth max. 18.5 mm)
- Magnetic measurement principle
- Shaft composition: stainless steel
- Safety rating IP67 on both housing and shaft sides
- -40…+85 °C
- Max. 4000 rpm (continuous duty 2000 rpm)
- Energy collection technology
- 10…30 VDC
- SSI, gray
- M12 × 1 plug, male, 8-pole
- Singleturn resolution of 13 bits
- Multiturn with a resolution of 12 bits
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 200 g |
Technical Data
| Encoder line | Industrial Series |
| Technology | Magnetic |
| Output category | Complete multiturn |
| Shaft Type | Closed-end shaft |
| Shaft diameter d (mm) | 6 |
| Flange width | Ø 36 mm |
| Flange classification | Flange featuring a mounting component |
| Supply voltage | 10…30 VDC |
| Communication standard | SSi |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -40…+85 °C |
| Safety rating shaft | IP67 |
| Safety rating | IP67 |

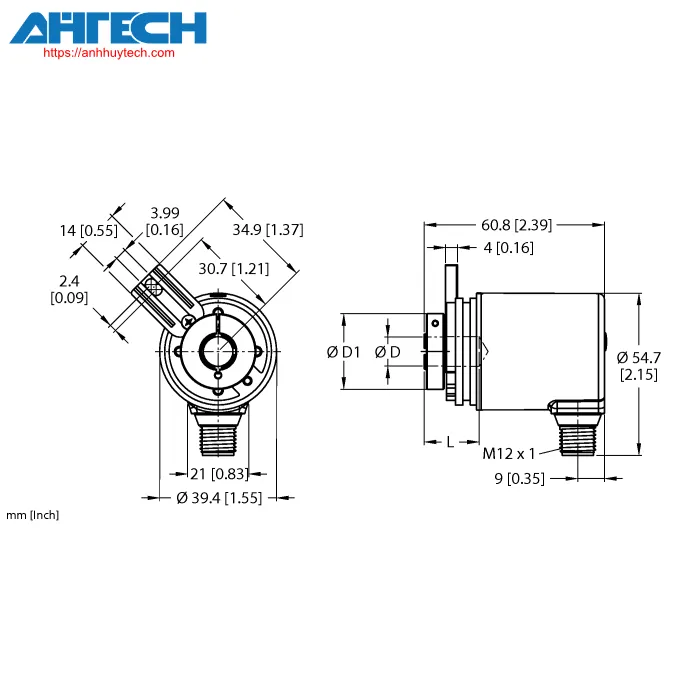

Download Specification for REM-100B6T-3C13S12M-H1181
