Encoder Turck REM-102B10T-9D38B-H1151
TURCK CATEGORIES

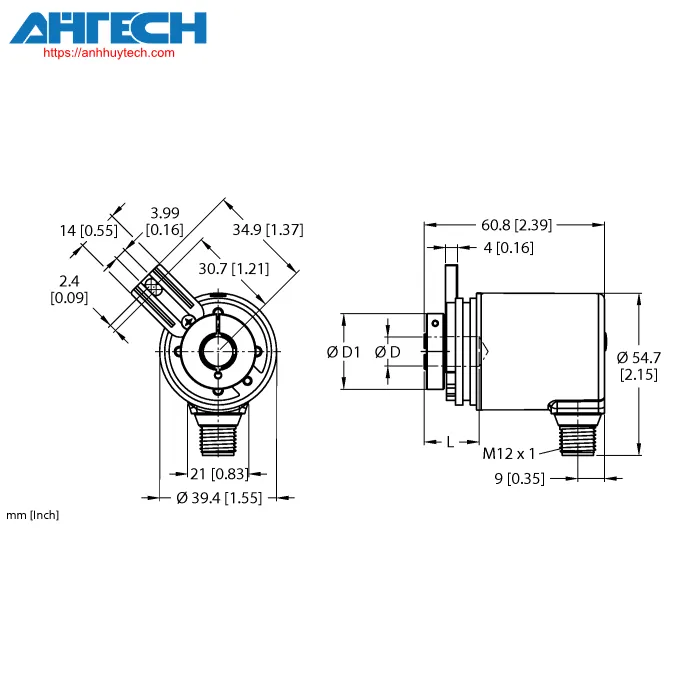

Encoder REM-102B10T-9D38B-H1151
Brand: Turck
Product Code: 100011373
Country of origin: DE
- Flange featuring a mounting component
- Blind hole cylindrical shaft, Ø 10 mm (insertion depth max. 18.5 mm)
- Magnetic measurement principle
- Shaft composition: stainless steel
- Safety rating IP67 on both housing and shaft sides
- -40…+85 °C
- Max. 4000 rpm (continuous duty 2000 rpm)
- Energy collection technology
- 10…30 VDC
- CANopen
- M12 × 1 plug connector, 5-pin
- Singleturn resolution of 14 bits adjustable, standard 14 bits
- Multiturn resolution extendable to a maximum of 16 bits across total resolution
- Complete resolution 32 bit configurable, preset: 32 bit
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 200 g |
Technical Data
| Encoder line | Industrial Series |
| Technology | Magnetic |
| Output category | Complete multiturn |
| Shaft Type | Closed-end shaft |
| Shaft diameter d (mm) | 10 |
| Flange width | Ø 36 mm |
| Flange classification | Flange featuring a mounting component |
| Supply voltage | 10…30 VDC |
| Communication standard | CANopen |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -40…+85 °C |
| Safety rating shaft | IP67 |
| Safety rating | IP67 |
Download Specification for REM-102B10T-9D38B-H1151
