Encoder Turck REM-105S10C-9D32B-B1M12/N46
TURCK CATEGORIES

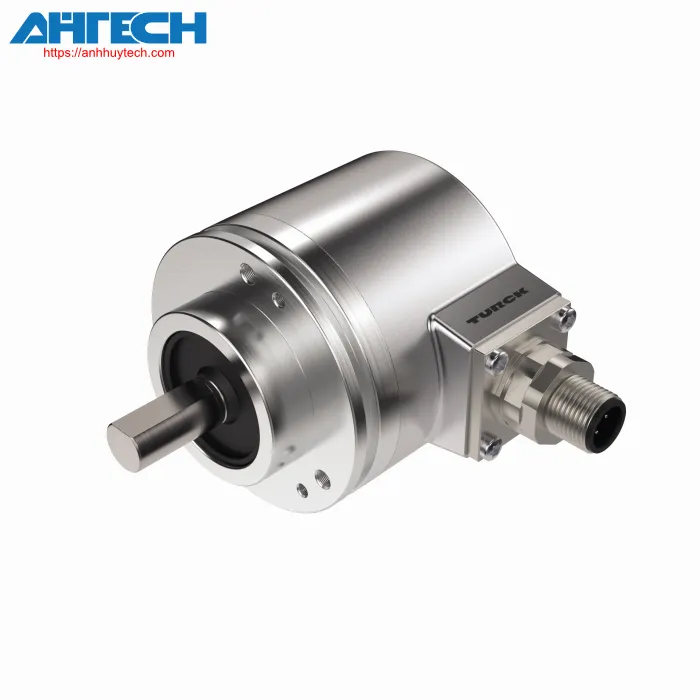

Encoder REM-105S10C-9D32B-B1M12/N46
Brand: Turck
Product Code: 100011420
Country of origin: DE
- Mounting flange, diameter Ø 58 mm
- Rigid shaft, diameter Ø 10 mm × 20 mm length
- Optical measurement method
- Shaft composition: stainless steel
- Safety rating IP67 on both housing and shaft sides
- -40…+80 °C
- Max. 8000 rpm (suitable for continuous use at 5000 rpm)
- 10…30 VDC
- CANopen
- M12 × 1 male, 5-pin
- Singleturn resolution of 14 bits adjustable, standard 14 bits
- Multiturn resolution extendable to a maximum of 16 bits across total resolution
- Complete resolution 32 bit configurable, preset: 32 bit
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 460 g |
Technical Data
| Encoder line | Industrial Series |
| Technology | Optical |
| Output category | Complete multiturn |
| Shaft Type | Rigid shaft |
| Shaft diameter d (mm) | 10 |
| Flange width | Ø 58 mm |
| Flange classification | Mounting flange |
| Supply voltage | 10…30 VDC |
| Communication standard | CANopen |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -40…+80 °C |
| Safety rating shaft | IP67 |
| Safety rating | IP67 |
Download Specification for REM-105S10C-9D32B-B1M12/N46
Download PDF
