Encoder Turck REM-106BA3T-9E43B-B3M12
TURCK CATEGORIES

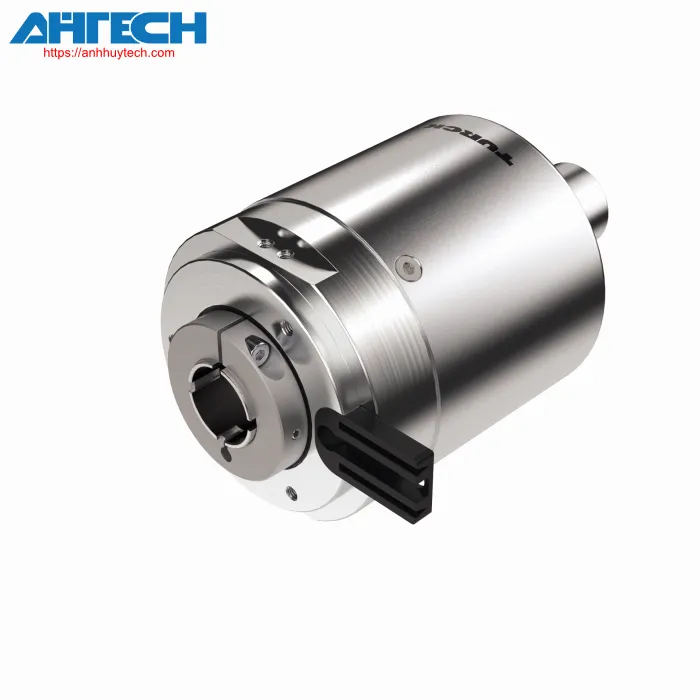

Encoder REM-106BA3T-9E43B-B3M12
Brand: Turck
Product Code: 100046558
Country of origin: DE
- Receptacle equipped with torque stop, Ø 58 mm
- Cylindrical blind hole shaft, Ø 1/2? (12.7 mm)
- Optical measurement method
- Shaft composition: stainless steel
- Safety rating IP67 on the housing side
- -40…+80 °C
- Max. 6000 rpm
- 10…30 VDC
- Profinet IO, RT, and IRT with latency times of up to 250 µs
- Encoder profile version 4.2
- Media Redundancy Protocol (MRP)
- Link Layer Discovery Protocol (LLDP)
- Basic Network Management Protocol (SNMP)
- Fast Startup (FSU)
- M12 × 3 plug, 4-contact
- Singleturn resolution adjustable up to 19 bits, standard 13 bits
- Multiturn resolution can reach up to 24 bits, with a standard setting of 12 bits
- Complete resolution adjustable up to 43 bit, standard 25 bit
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 430 g |
Technical Data
| Encoder line | Industrial Series |
| Technology | Optical |
| Output category | Complete multiturn |
| Shaft Type | Closed-end shaft |
| Shaft diameter d (mm) | 12.7 |
| Flange width | Ø 58 mm |
| Flange classification | Flange featuring a mounting component |
| Supply voltage | 10…30 VDC |
| Communication standard | PROFINET |
| Type of connection | Connector 3 x M12 |
| Enclosure material | Aluminium |
| Surrounding temperature | -40…+80 °C |
| Safety rating shaft | IP67 |
| Safety rating | IP67 |
Download Specification for REM-106BA3T-9E43B-B3M12
