Encoder Turck REM-E-195T6S-IOL32B-H1141
TURCK CATEGORIES

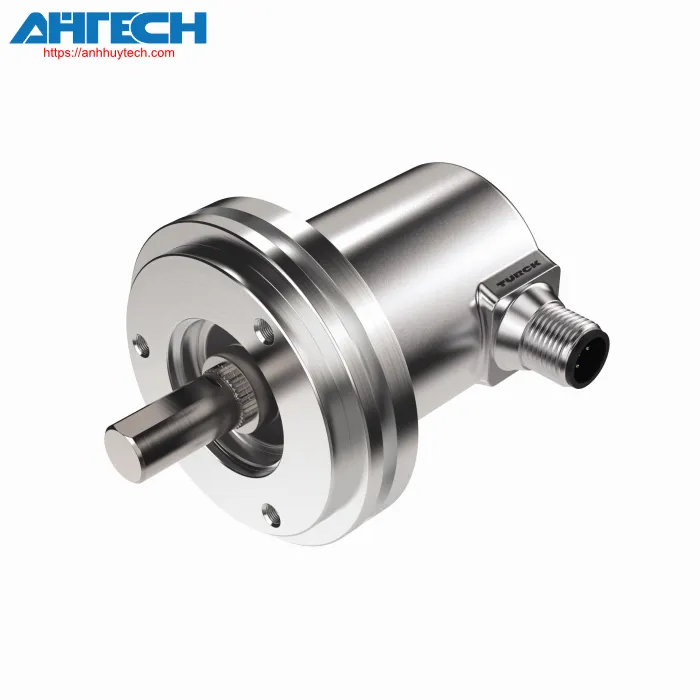

Encoder REM-E-195T6S-IOL32B-H1141
Brand: Turck
Product Code: 100021183
Country of origin: DE
- Synchronizing flange, Ø 58 mm
- Rigid shaft, Ø 6 mm × 12.5 mm
- Magnetic measurement principle
- Shaft composition: stainless steel
- IP64 protection rating on the housing and shaft side
- -20…+70 °C
- Max. 4000 rpm (continuous duty 2000 rpm)
- Energy collection technology
- 18…30 VDC
- M12 × 1 plug connector, 4-pole
- Singleturn resolution of 14 bits adjustable, standard 14 bits
- Multiturn resolution adjustable up to 18 bits of overall resolution, standard setting 18 bits
- Overall resolution 32 bit adjustable, standard 32 bit
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 360 g |
Technical Data
| Encoder line | Efficiency-Line |
| Technology | Magnetic |
| Output category | Complete multiturn |
| Shaft Type | Rigid shaft |
| Shaft diameter d (mm) | 6 |
| Flange width | Ø 58 mm |
| Flange classification | Synchronizing flange |
| Supply voltage | 18…30 VDC |
| Communication standard | IO-Link |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -20…+70 °C |
| Safety rating shaft | IP64 |
| Safety rating | IP64 |
Download Specification for REM-E-195T6S-IOL32B-H1141
Download PDF
