Encoder Turck RES-180S8S-7AAL-H1151/N0
TURCK CATEGORIES
Encoder RES-180S8S-7AAL-H1151/N0
Brand: Turck
Product Code: 100016357
Country of origin: DE

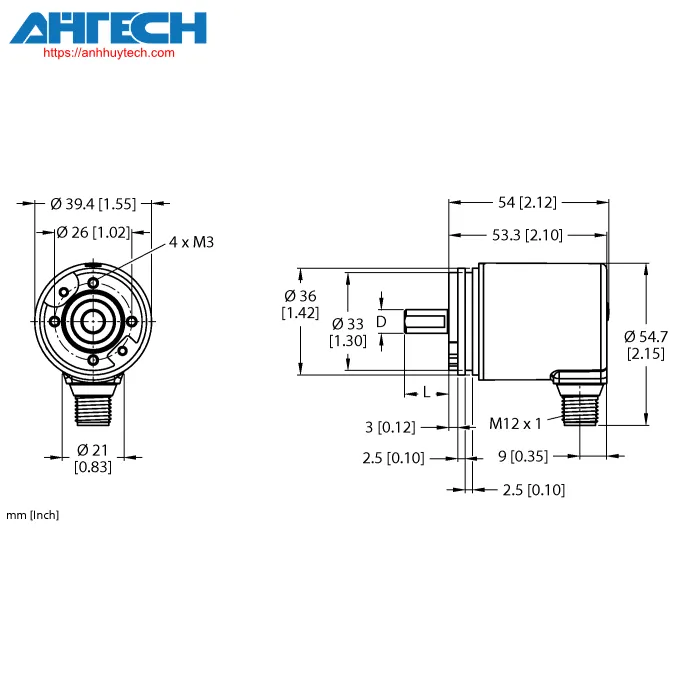

- Synchronizing flange, Ø 36 mm
- Rigid shaft, Ø 8 mm × 15 mm
- Magnetic measurement principle
- Shaft composition: stainless steel
- Safety rating IP67 on both housing and shaft sides
- -40…+85 °C
- Max. 4000 rpm (continuous duty 2000 rpm)
- 10…30 VDC
- Analog output signal signal 4…20 mA
- Counting mode counterclockwise
- M12 × 1 plug connector, 5-pin
- 360° resolution at 12-bit (4096 steps)
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 259 g |
Technical Data
| Encoder line | Industrial Series |
| Technology | Magnetic |
| Output category | Absolute single-turn |
| Shaft Type | Rigid shaft |
| Shaft diameter d (mm) | 8 |
| Flange width | Ø 36 mm |
| Flange classification | Synchronizing flange |
| Measurement range | 0…360° |
| Supply voltage | 10…30 VDC |
| Output category | Analog output signal signal |
| Output of current | 4…20 mA |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -40…+85 °C |
| Safety rating shaft | IP67 |
| Safety rating | IP67 |
Download Specification for RES-180S8S-7AAL-H1151/N0
Download PDF
