Encoder Turck RES-183B8E-3C13B-H1181
TURCK CATEGORIES
Encoder RES-183B8E-3C13B-H1181
Brand: Turck
Product Code: 100016351
Country of origin: DE

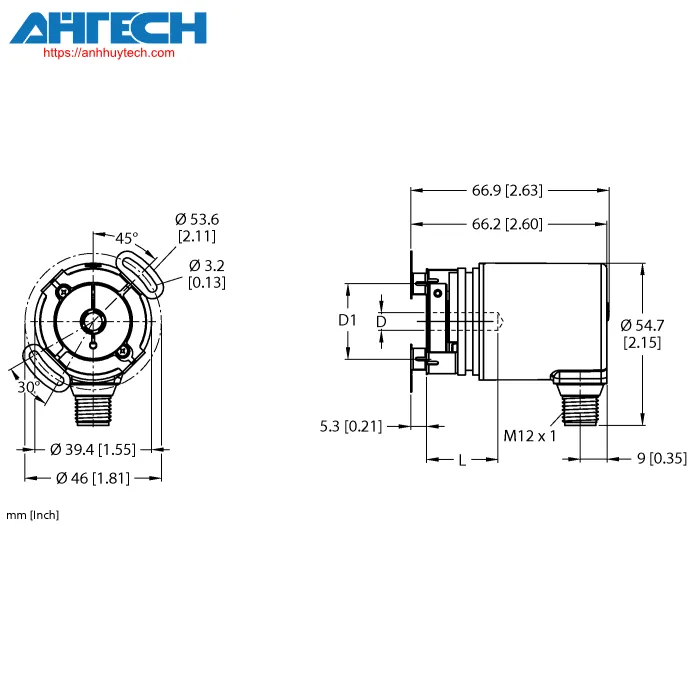

- Flange with stator connection, Ø 46 mm
- Blind hole cylindrical shaft, Ø 8 mm (maximum plug-in depth 18.5 mm)
- Magnetic measurement principle
- Shaft composition: stainless steel
- Safety rating IP67 on both housing and shaft sides
- -40…+85 °C
- Max. 4000 rpm (continuous duty 2000 rpm)
- 10…30 VDC
- SSI, gray
- M12 × 1 plug connector, 8-pole
- 360° resolution at 13-bit (8192 steps)
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 200 g |
Technical Data
| Encoder line | Industrial Series |
| Technology | Magnetic |
| Output category | Absolute single-turn |
| Shaft Type | Closed-end shaft |
| Shaft diameter d (mm) | 8 |
| Flange width | Ø 46 mm |
| Flange classification | Flange with stator connection |
| Measurement range | 0…360° |
| Supply voltage | 10…30 VDC |
| Communication standard | SSi |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -40…+85 °C |
| Safety rating shaft | IP67 |
| Safety rating | IP67 |
Download Specification for RES-183B8E-3C13B-H1181
