Encoder Turck RES-186SA0C-3C13B-H1181
TURCK CATEGORIES

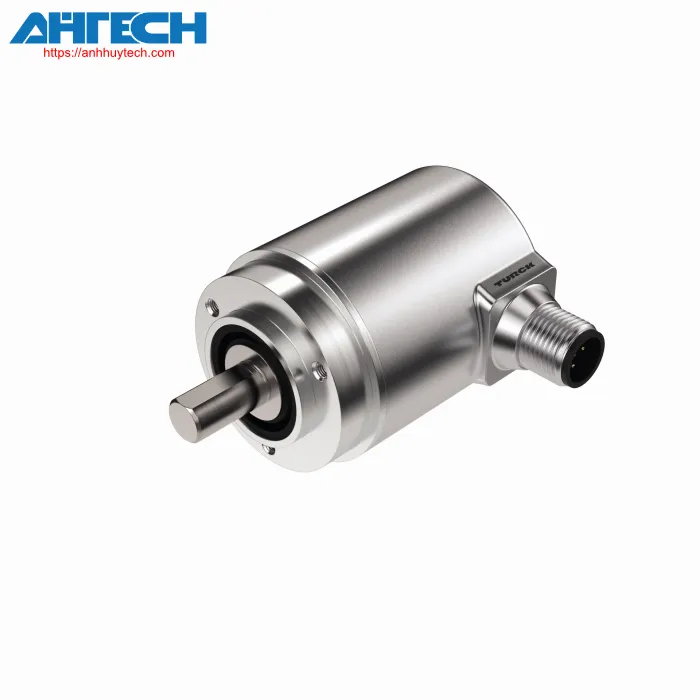

Encoder RES-186SA0C-3C13B-H1181
Brand: Turck
Product Code: 100016316
Country of origin: DE
- Mounting flange, diameter Ø 58 mm
- Rigid shaft, Ø 6.35 mm × 22.225 mm
- Optical measurement method
- Shaft composition: stainless steel
- Safety rating IP67 on both housing and shaft sides
- -40…+85 °C
- Max. 8000 rpm (suitable for continuous use at 5000 rpm)
- 10…30 VDC
- SSI, gray
- M12 × 1 plug, male connector, 8 contacts
- 360° resolution at 13-bit (8192 steps)
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 450 g |
Technical Data
| Encoder line | Industrial Series |
| Technology | Optical |
| Output category | Absolute single-turn |
| Shaft Type | Rigid shaft |
| Shaft diameter d (mm) | 6.35 |
| Flange width | Ø 58 mm |
| Flange classification | Mounting flange |
| Measurement range | 0…360° |
| Supply voltage | 10…30 VDC |
| Communication standard | SSi |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -40…+85 °C |
| Safety rating shaft | IP67 |
| Safety rating | IP67 |
Download Specification for RES-186SA0C-3C13B-H1181
