Encoder Turck RES-193BA0T-IOL14B-H1141
TURCK CATEGORIES

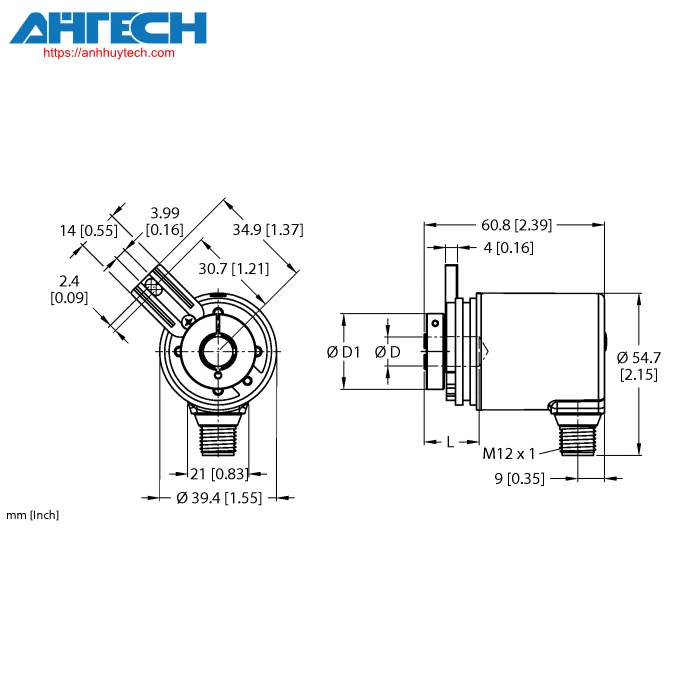

Encoder RES-193BA0T-IOL14B-H1141
Brand: Turck
Product Code: 100020157
Country of origin: DE
- Flange featuring a mounting component
- Blind hole tubular shaft, Ø 6.35 mm (insertion depth max. 18.5 mm)
- Magnetic measurement principle
- Shaft composition: stainless steel
- Safety rating IP67 on both housing and shaft sides
- -40…+85 °C
- Max. 4000 rpm (continuous duty 2000 rpm)
- 18…30 VDC
- M12 × 1 plug connector, 8-pole
- 360° resolution at 14-bit (16384 levels)
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 220 g |
Technical Data
| Encoder line | Industrial Series |
| Technology | Magnetic |
| Output category | Absolute single-turn |
| Shaft Type | Closed-end shaft |
| Shaft diameter d (mm) | 6.35 |
| Shaft diameter d | 0.25 in |
| Flange width | Ø 36 mm |
| Flange classification | Flange featuring a mounting component |
| Measurement range | 0…360° |
| Supply voltage | 18…30 VDC |
| Communication standard | IO-Link |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Die-cast zinc |
| Surrounding temperature | -40…+85 °C |
| Safety rating shaft | IP67 |
| Safety rating | IP67 |
Download Specification for RES-193BA0T-IOL14B-H1141
