Encoder Turck RI360P0-QR24M0-CNX4-2H1150
TURCK CATEGORIES
Encoder RI360P0-QR24M0-CNX4-2H1150
Brand: Turck
Product Code: 1590914
Country of origin: DE
- Durable, compact enclosure
- Numerous installation options
- Status indicated through LED
- Locating component and aluminum ring not included
- CANopen protocol
- Baud rate ranging from 10 kbps to 1 Mbps; Default configuration: 125 kbps
- Node address 1 to 127; Default setting 3
- Termination resistor activated through CANopen device access
- Resistant to electromagnetic disturbance
- 10 … 30 VDC
- M12 x 1 plug, 5-pin, CAN input, CAN output
- Acc. to CiA DS-301, CiA 305, CiA 406
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 329 g |
Technical Data
| Encoder line | Premium series |
| Technology | Non-contact |
| Output category | Absolute single-turn |
| Shaft Type | Hollow shaft |
| Shaft diameter d (mm) | 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20 |
| Dimension | 81 x 78 x 24 mm |
| Flange classification | Flange without attachment component |
| Measurement range | 0…360° |
| Supply voltage | 10…30 VDC |
| Communication standard | CANopen |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Metal/plastic, ZnAlCu1/PBT-GF30-V0 |
| Surrounding temperature | -25…+85 °C |
| Safety rating | IP68/IP69K |
Download Specification for RI360P0-QR24M0-CNX4-2H1150
Download PDF
RELATED PRODUCTS
Encoder REI-E-114I10E-2B1024-H1181
- Brand: TURCK
-
Category Turck Products:
Encoder -
Product Code:
100011765

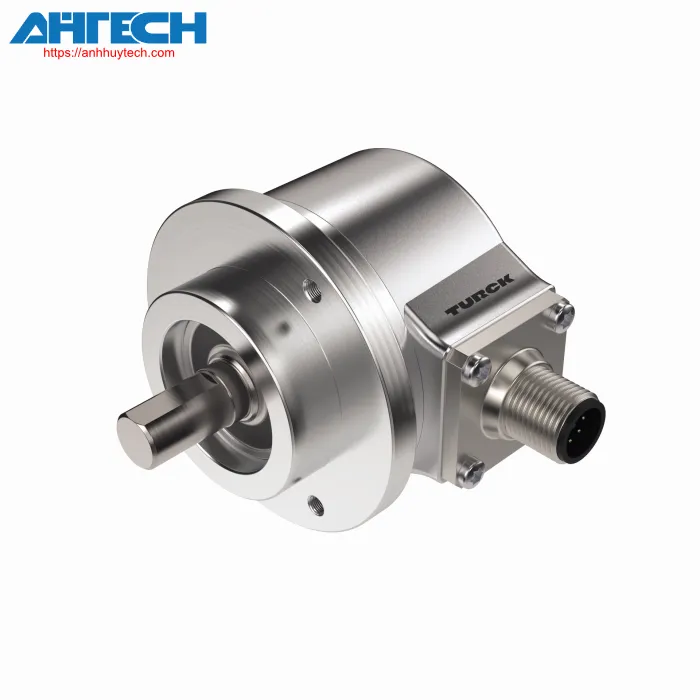

Encoder REI-E-113T12C-2B512-H1181
