Encoder Turck RI360P0-QR24M0-INCRX2-H1181
TURCK CATEGORIES
Encoder RI360P0-QR24M0-INCRX2-H1181
Brand: Turck
Product Code: 1590910
Country of origin: DE
- Durable, compact enclosure
- Numerous installation options
- Status indicated through LED
- Resistant to electromagnetic disturbance
- 1024 pulses per revolution (default)
- 360, 512, 1000, 1024, 2048, 2500, 3600, 4096, parameterized through Easy-Teach
- Flexible configuration of pulse count from 1 to 5000 through PACTware
- Location of z-track established through Easy-Teach
- Burst function, absolute angular position output incrementally for each Easy-Teach pulse
- 10…30 VDC
- Male M12 x 1, 8-pin
- Push-pull A, B, Z, A (inverse), B (inverse)
Contact via Zalo
Phone call
General data
| Place of manufacture | DE |
| Weight | 335 g |
Technical Data
| Encoder line | Premium series |
| Technology | Non-contact |
| Output category | Differential |
| Shaft Type | Hollow shaft |
| Shaft diameter d (mm) | 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20 |
| Dimension | 81 x 78 x 24 mm |
| Flange classification | Flange without attachment component |
| Differential resolution | 1024 ppr |
| Supply voltage | 10…30 VDC |
| Output category | Push-Pull/HTL |
| Type of connection | Connector, M12 × 1 |
| Enclosure material | Metal/plastic, ZnAlCu1/PBT-GF30-V0 |
| Surrounding temperature | -25…+85 °C |
| Safety rating | IP68/IP69K |
Download Specification for RI360P0-QR24M0-INCRX2-H1181
Download PDF
RELATED PRODUCTS

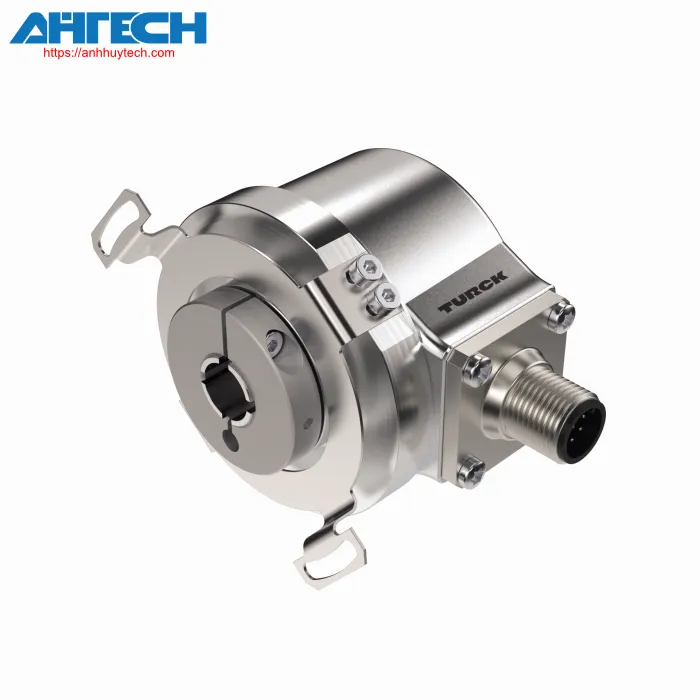

Encoder REI-E-114I12E-4B360-H1181
